CECO Adwest Retox 10,000 Used Regenerative Thermal Oxidizer (RTO)

CECO Adwest Retox 10,000 Used Regenerative Thermal Oxidizer (RTO)

CECO Adwest regenerative thermal oxidizer (RTO) with 10,000 scfm capacity for sale; including performance and parts warranty.

Request a Quote
No items found.

Equipment Details

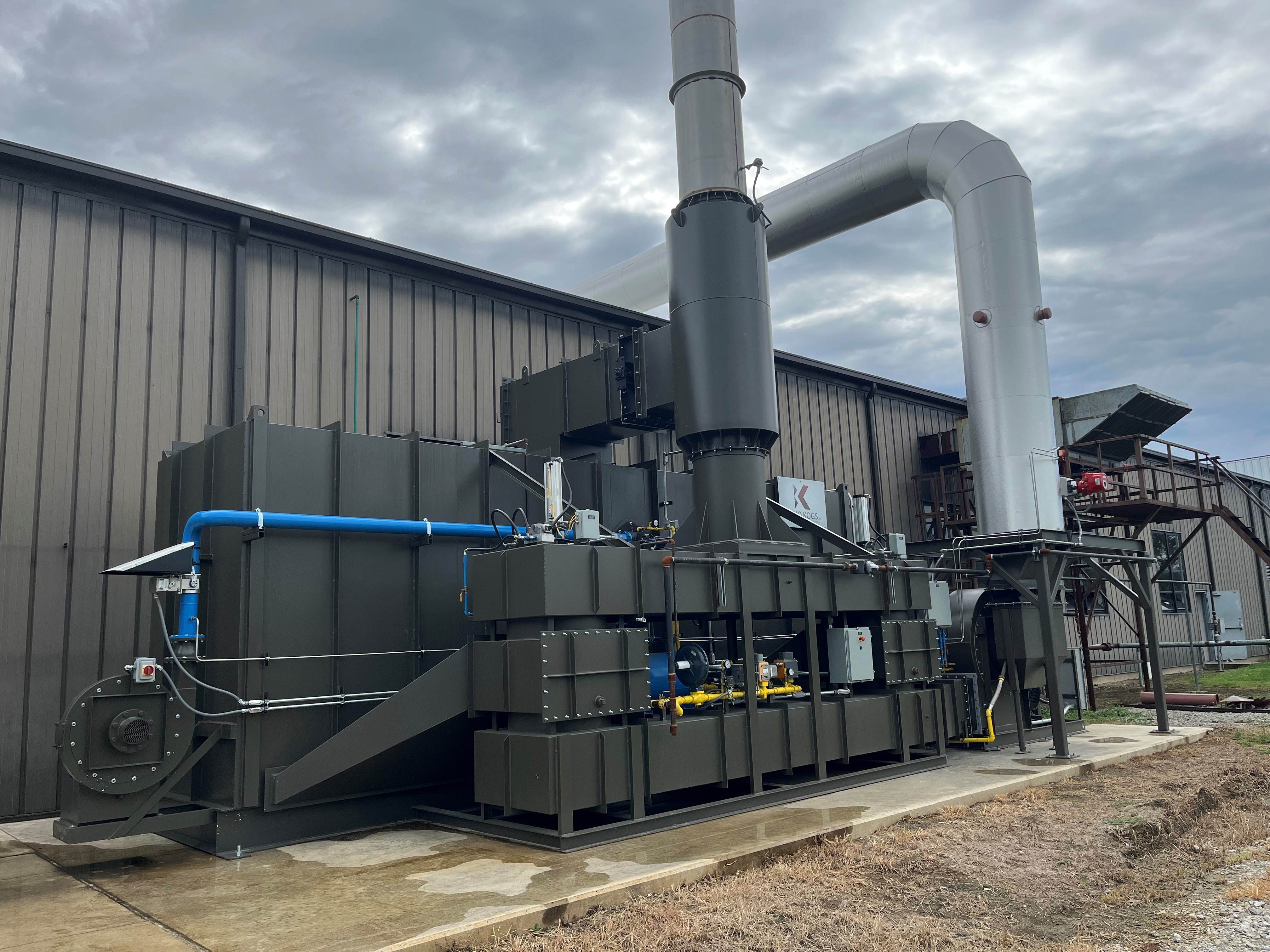

This used CECO Adwest Retox 10,000 regenerative thermal oxidizer (RTO) has 10,000 scfm capacity. This used RTO is in very good condition; treated emissions from heatset web offset printing press and was taken off-line in November 2022 and is available immediately. It includes a two-chamber design, with random packed ceramic media and a dual poppet (switching) valve configuration plus a VOC entrapment feature.

CECO Adwest Retox RTO systems are designed to provide one of the lowest utility costs (fuel & electric) of any leading oxidizer system. It is a simple RTO with over-sized beds to reduce pressure drop.

This regenerative thermal oxidizer has the following features:


  • Maximum design flow – 10,000 scfm @ up to 300F process emissions
  •
  • Dual bed 95% heat exchanger design (ceramic media included)
  •
  • Pneumatic poppet valve for flow direction changes through media
  •
  • VOC Entrapment (Puff capture) to provide high VOC destruction & eliminate visible emissions
  •
  • Main RTO fan with  TEFC motor and ABB variable frequency drive
  •
  • Maxon Kinemax 4 burner for heat-up
  •
  • Allen Bradley CompactLogix PLC with Beijer operator interface
  •
  • Yokogawa Digital Chart Recorder
  •
  • Combustion blower with TEFC motor
  •
  • Isolation damper with electro-pneumatic actuator
  •
  • Inlet start-up/Fresh air damper with electro-pneumatic actuator
  •
  • Exhaust stack w/test ports (approx 30’ from grade)
  •
  • Fuel gas injection for high fuel efficiency and low NOx operation
  •
  • Complete owner’s manual with electrical and mechanical drawings

See case studies and photos of refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.

Equipment Specifications

  • Type of Equipment:
  • Brand:
    CECO Adwest
  • Approx. Footprint:
    Approx. 45’ – 5" long, 17' wide
  • Weight:
    Approx. 45,000 lbs (including ceramic media)
  • Electrical Requirements:
    460/3/60, 130 amps
  • Gas Requirements:
    2,890 scfh max @ 5 psig
  • Compressed Air Requirements:
    720 cfh @ 90 psi and -40F dew point

Request A Quote

You can also call Buster at 920-309-0725 or send us an email.
