Durr-Reeco Ecopure RL-15 15,000 Regenerative Thermal Oxidizer (RTO) Unit #2
Used Durr Reeco Ecopure RL-15 Rotary Valve 15,000 Regenerative Thermal Oxidizer
Request a Quote
east
.jpg)
.jpg)
.jpg)
No items found.

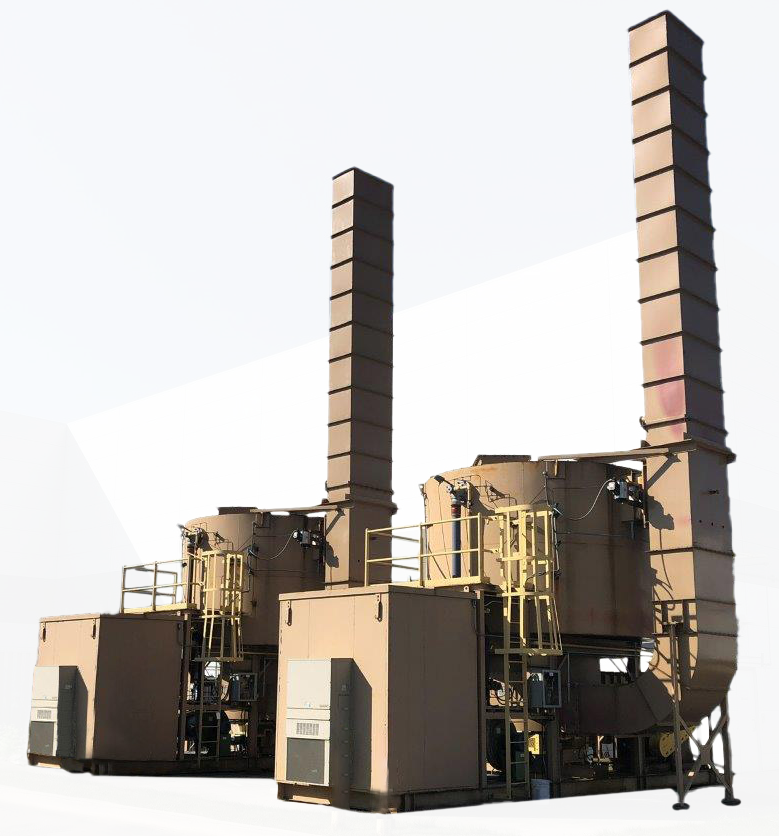

Please Note: The RTO shown in the main photo is representative of a completed unit following refurbishment and is provided for illustrative purposes only. It is not the exact unit being offered. Final appearance, configuration, and included components may vary based on specific project requirements, scope of refurbishment, and customer specifications. The smaller photos shown above depict the actual unit in its current condition prior to refurbishment.
Equipment Details
Durr Reeco Ecopure RL-15 Rotary Valve 15,000 Regenerative Thermal Oxidizer For Sale
Durr Environmental-Reeco 15,000 SCFM regenerative thermal oxidizer (RTO). Previously treated emissions from a battery line as part of a tandem system with an identical RL-15. Reeco RL RTOs are very well built with a small footprint. Nearly new condition.
Listed below are the current features of this unit, equipment will be refurbished and upgraded per project requirements:
- Maximum design flow: 15,000 scfm @ 200° F process exhaust temp.
- Ceramic media chamber with structured ceramic media
- 95% effective heat exchanger
- Rotary Switching Valve – for flow direction changes thru the media (Electric drive)
- Main exhaust fan with 75 hp motor
- Variable Speed Drive
- Nozzle Mix Burner- Fire All model by North American Combustion
- Hot gas bypass feature (for high VOC concentration streams)
- Air Conditioned/Heated Control Room
- Mitsubishi MELSEC Q61P PLC with Pro-Face HMI (conversion to Allen-Bradley platform available)
- Exhaust stack 45′ from grade
See case studies of refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.
Equipment Specifications
- Type of Equipment:
- Brand:
- Approx. Footprint:31' L x 20' W total
- Weight:85,600
- Electrical Requirements:180 FLA; 480/3/60
- Gas Requirements:3,000 cfh max @ 5psig @ 1000 btu/CF (preliminary estimate)
- Compressed Air Requirements:300 CFH @ 90 psig and -40 deg F dew point
