Durr MEGTEC Clean Switch 15,000 Regenerative Thermal Oxidizer (RTO)

Durr MEGTEC Systems Clean Switch regenerative thermal oxidizer (RTO) with 15,000 scfm capacity for sale; including performance and parts warranty.

Request a Quote
east
No items found.
Please Note: The RTO shown in the after photo is representative of a completed unit following refurbishment and is provided for illustrative purposes only. It is not the exact unit being offered. Final appearance, configuration, and included components may vary based on specific project requirements, scope of refurbishment, and customer specifications.

Equipment Details

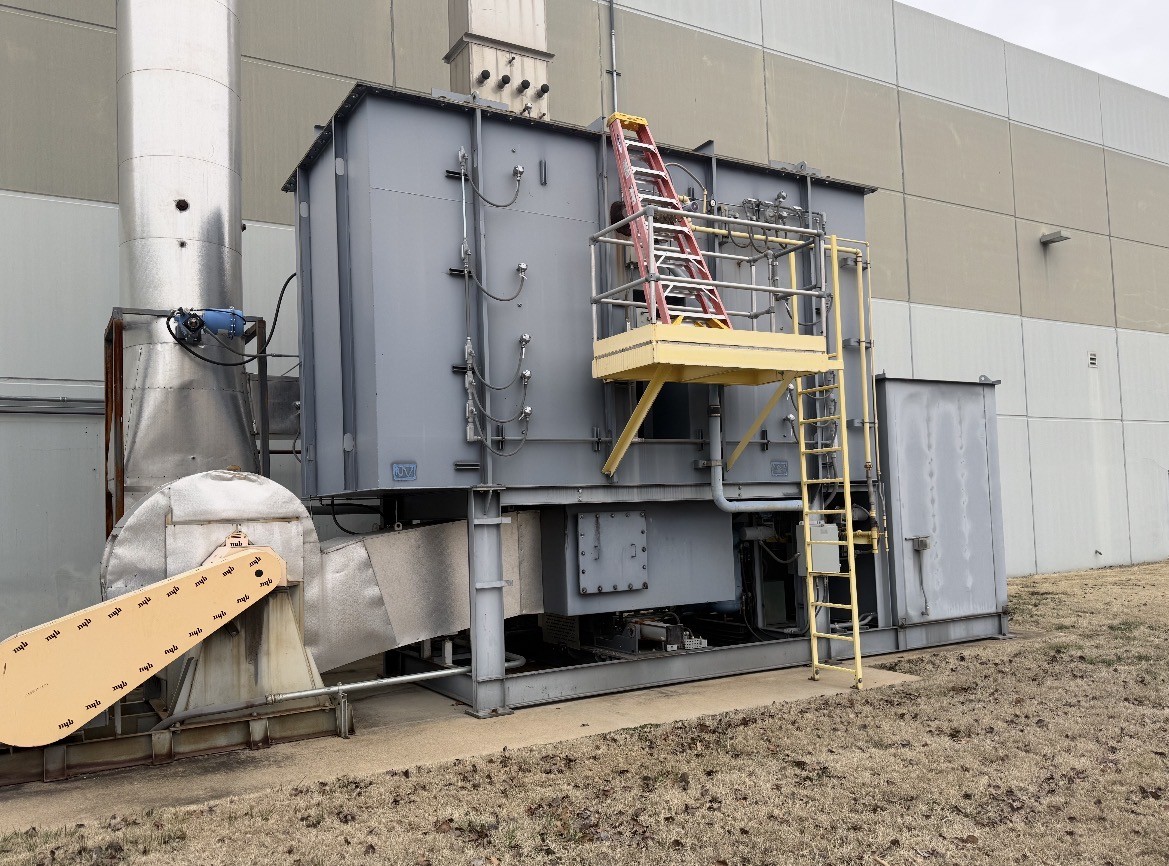

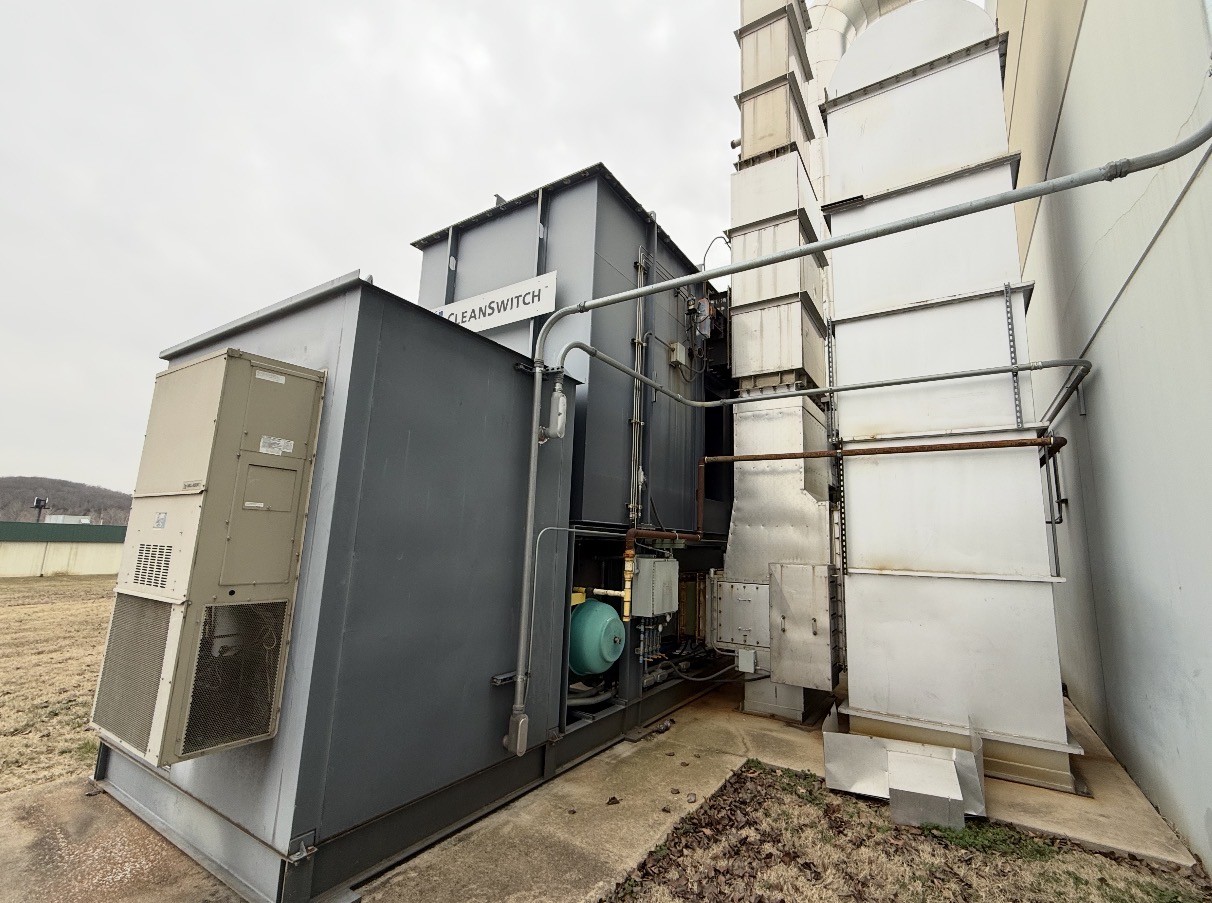

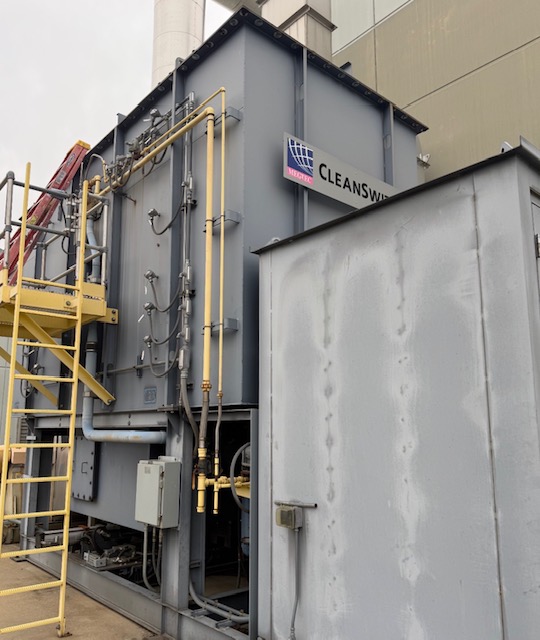

Durr MEGTEC Systems Clean Switch 15,000 Regenerative Thermal Oxidizer For Sale

Durr Environmental-MEGTEC Systems 15,000 SCFM regenerative thermal oxidizer (RTO).  Clean Switch RTOs are very well built with a small footprint. In very good condition.

Listed below are the current features of this unit, equipment will be refurbished and upgraded per project requirements:

  • Maximum design flow: 15,000 scfm @ 325° F process exhaust temp

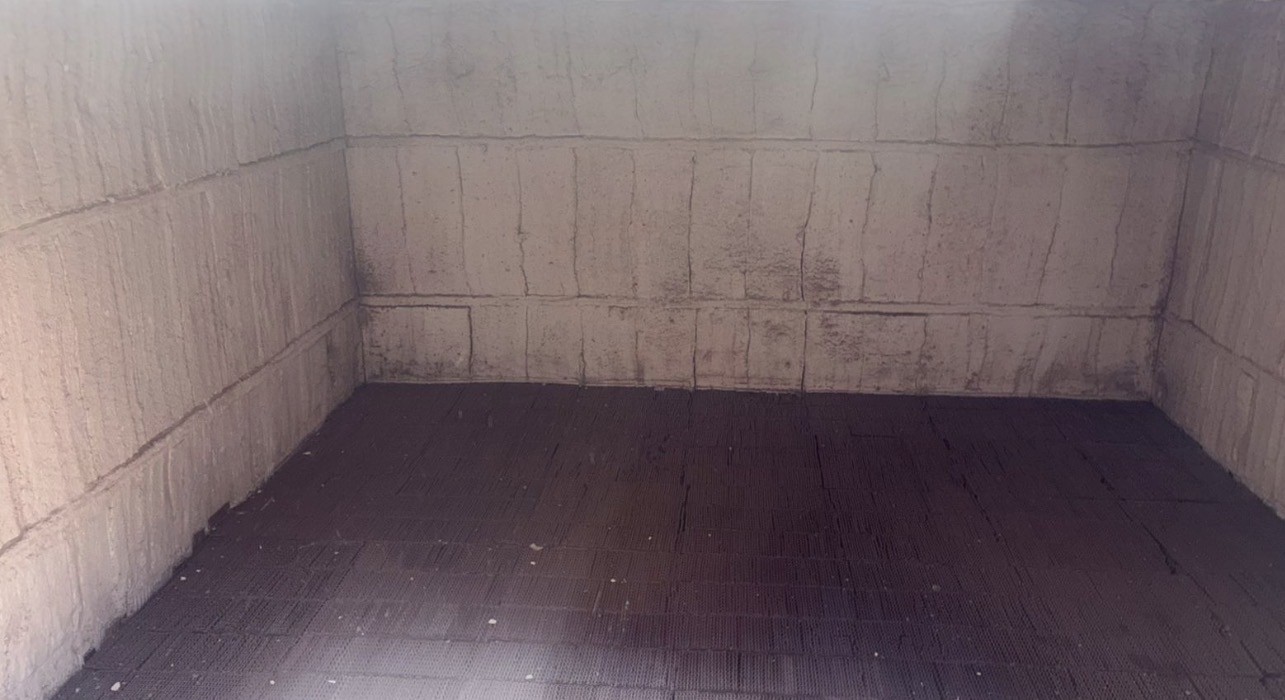

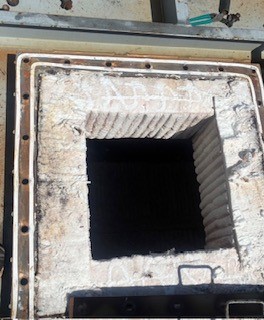

  • Two media chamber design with VOC entrapment chamber and structured ceramic media
  • 95% effective heat exchanger
  • Rotary Switching Valve -for flow direction changes through the media (pneumatic drive). Electric drive will be added during refurbishment process

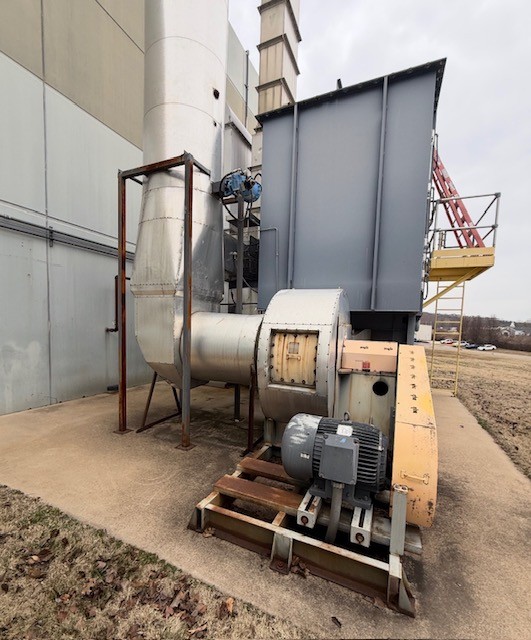

  • Main exhaust fan with 100 HP TEFC motor
  • Variable Speed Drive - Yaskawa
  • Maxon Kinemax 3 Medium Velocity Burner

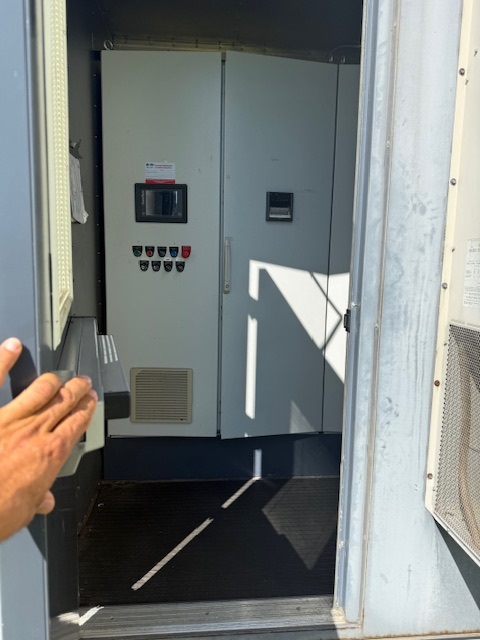

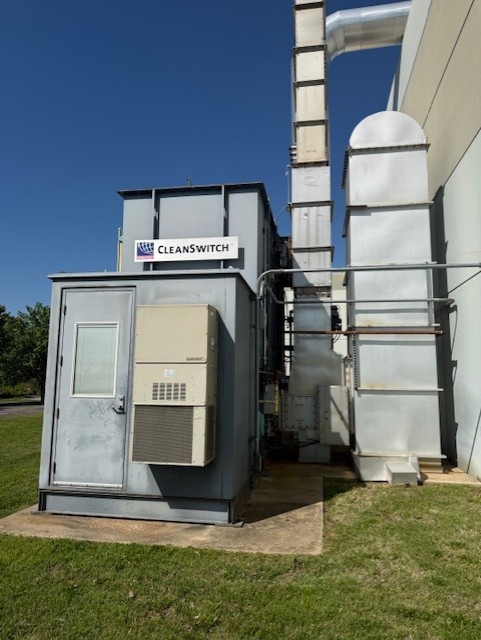

  • Air Conditioned/Heated Control Room

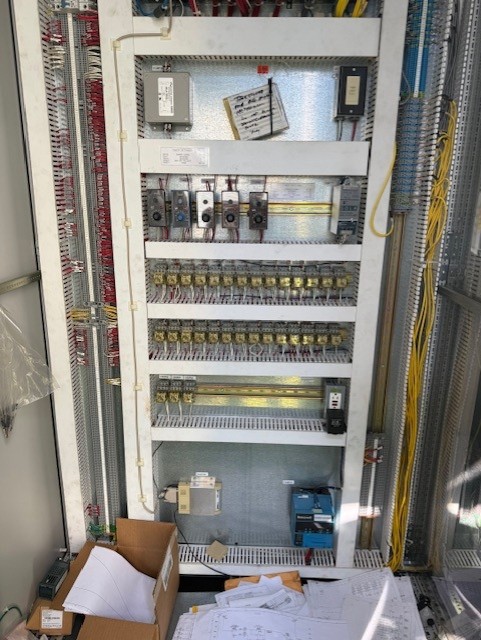

  • Allen Bradley PLC with PanelMate touchscreen HMI (upgraded during refurbishment process)
  • Paper data logger (upgraded during refurbishment process)
  • Hot gas bypass feature for handling high VOC concentrations
  • Recirculation feature for fuel savings in idle mode
  • Exhaust stack (30' from grade)

See case studies of Refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.

‍

Equipment Specifications

  • Type of Equipment:
    RTO
  • Brand:
    Dürr Environmental‍
  • Approx. Footprint:
    23' Wide, 24' High (Excluding stack)
  • Weight:
    74,000 lbs
  • Electrical Requirements:
    180 FLA (preliminary estimate)
  • Gas Requirements:
    ~3,500 cfh max @ 5+/-0.25 psig @ 1000 btu/CF
  • Compressed Air Requirements:
    300 CFH @ 90 psig and -40 deg F dew point

Request A Quote

You can also call Buster at 920-309-0725 or send us an email.
