Durr MEGTEC Systems Millennium 2,000 Regenerative Thermal Oxidizer (RTO)
Request a Quote
east
%20(1).jpg)
.jpg)
No items found.

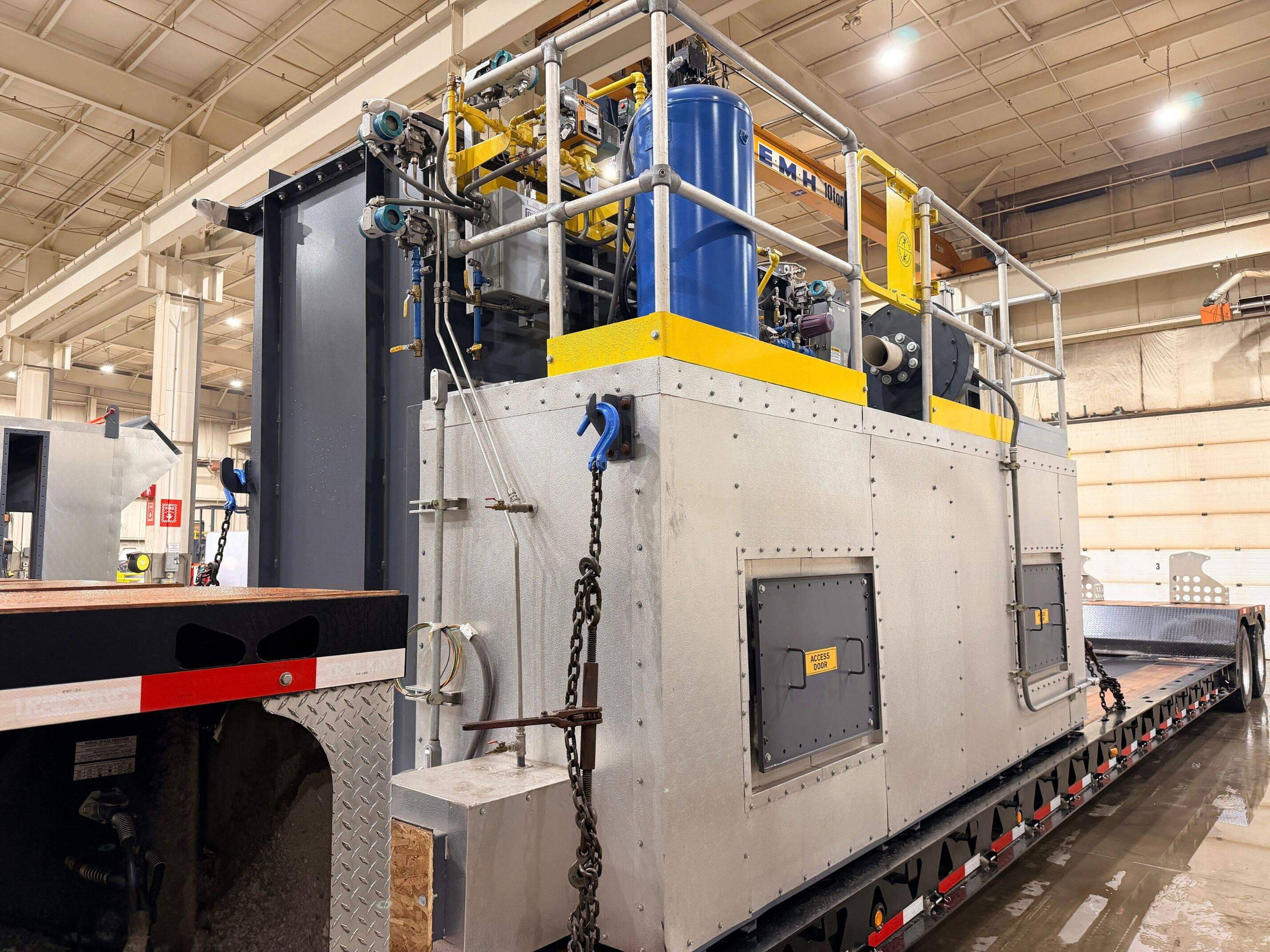

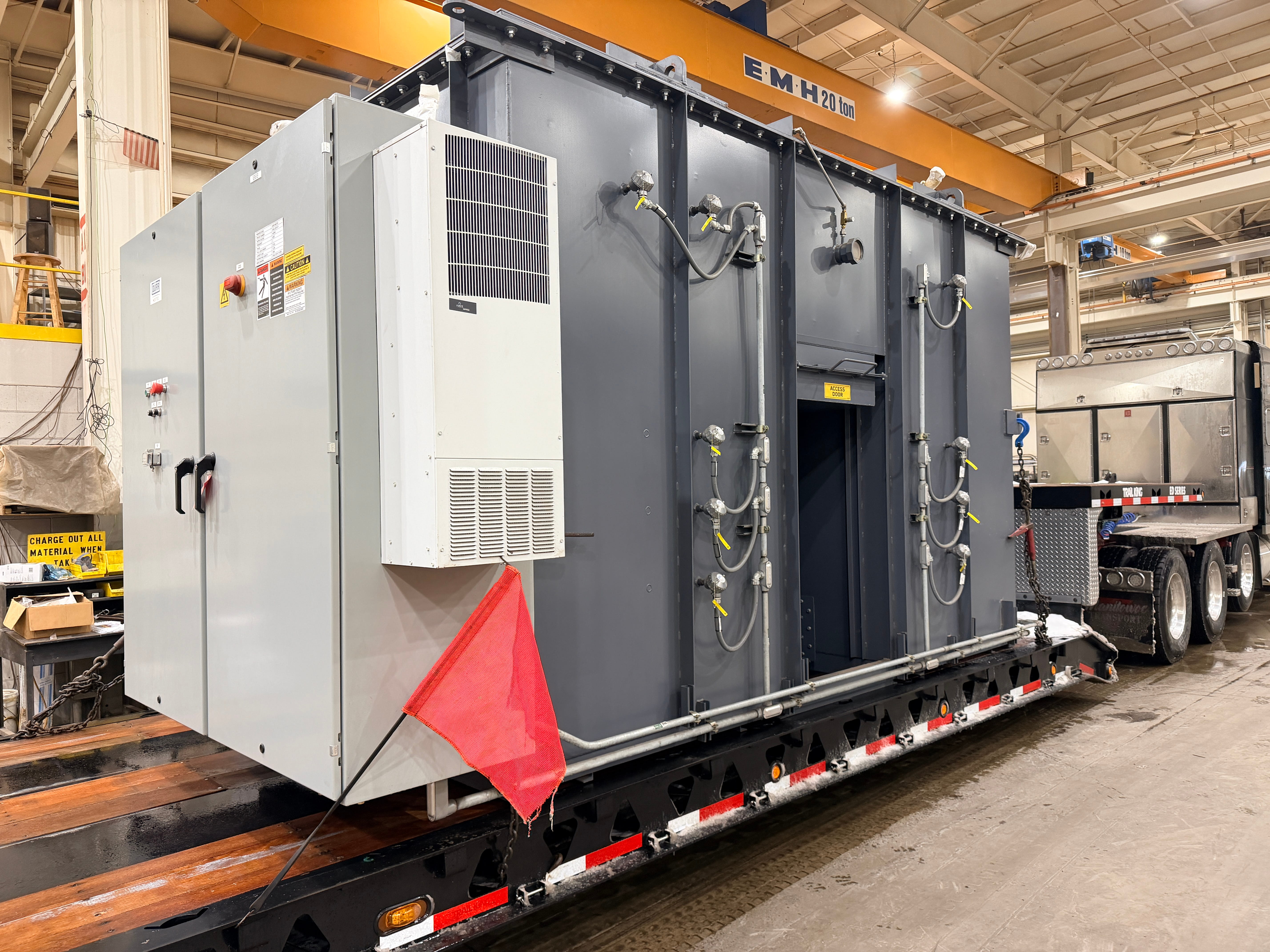

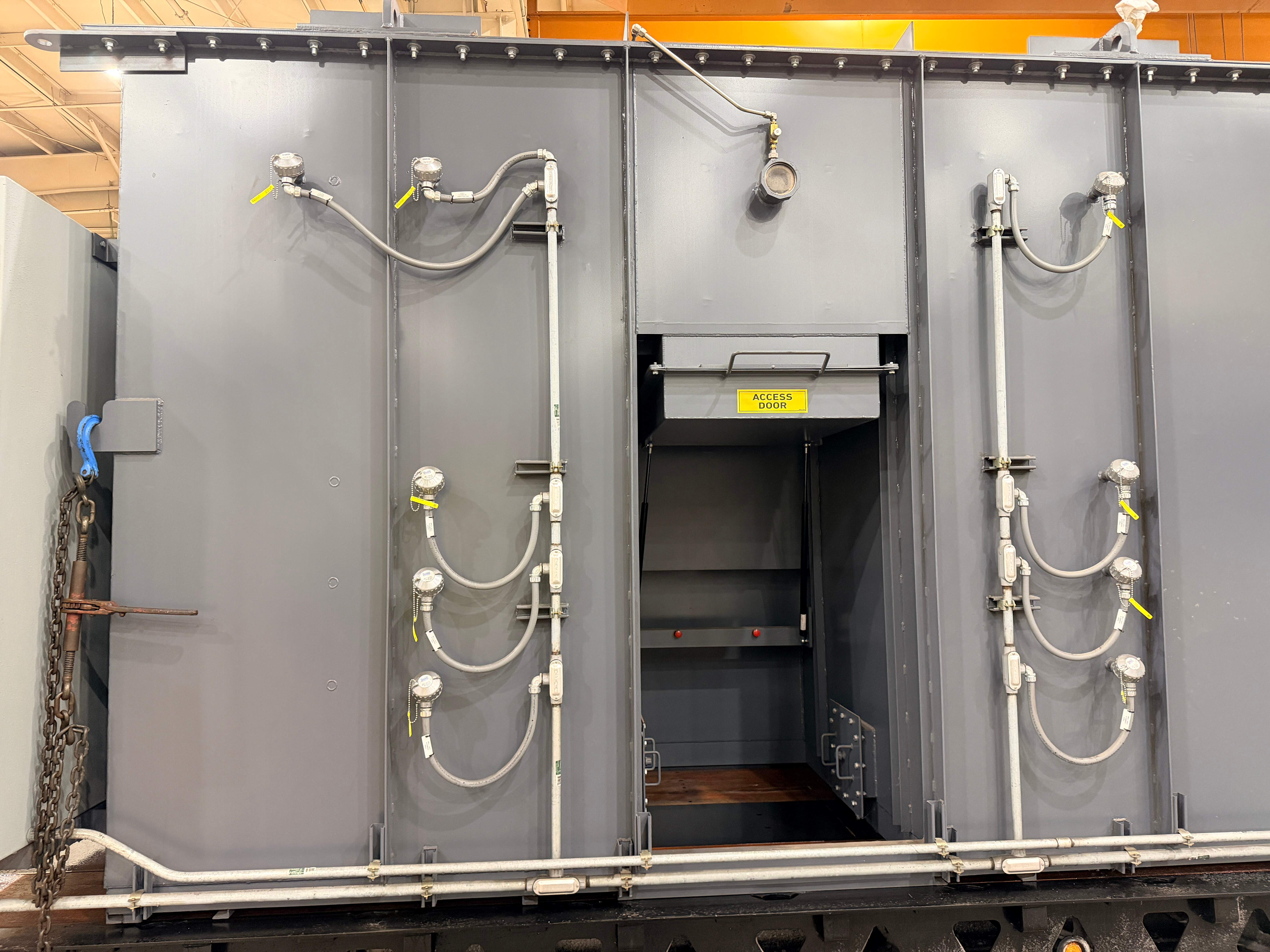

Please Note: The RTO shown in the main photo is representative of a completed unit following refurbishment and is provided for illustrative purposes only. It is not the exact unit being offered. Final appearance, configuration, and included components may vary based on specific project requirements, scope of refurbishment, and customer specifications. The smaller photos shown above depict the actual unit in its current condition prior to refurbishment.
Equipment Details
Durr MEGTEC Systems Millennium 2,000 Regenerative Thermal Oxidizer For Sale
This RTO has 2,000 scfm capacity, in very good condition.
Listed below are the current features of this unit, equipment will be refurbished and upgraded per project requirements:
- Design flow rate: 2,000 scfm (up to 125 degrees Fahrenheit process temperature)
- 94% effective heat exchanger
- Maxon Kinemax 3 burner for 330,000 BTU/hr

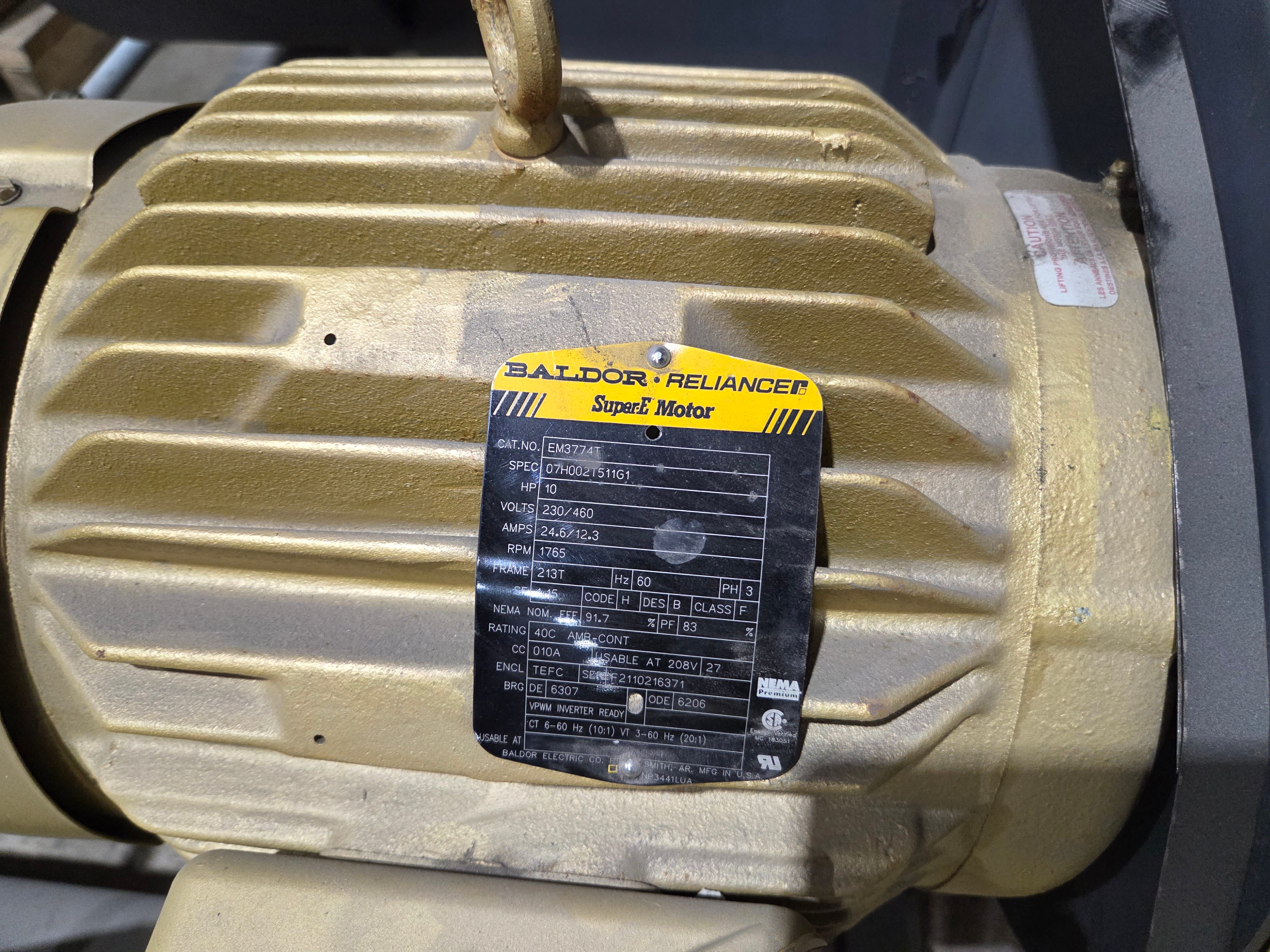

- Main fan with 10 hp motor and Mitsubishi variable speed drive

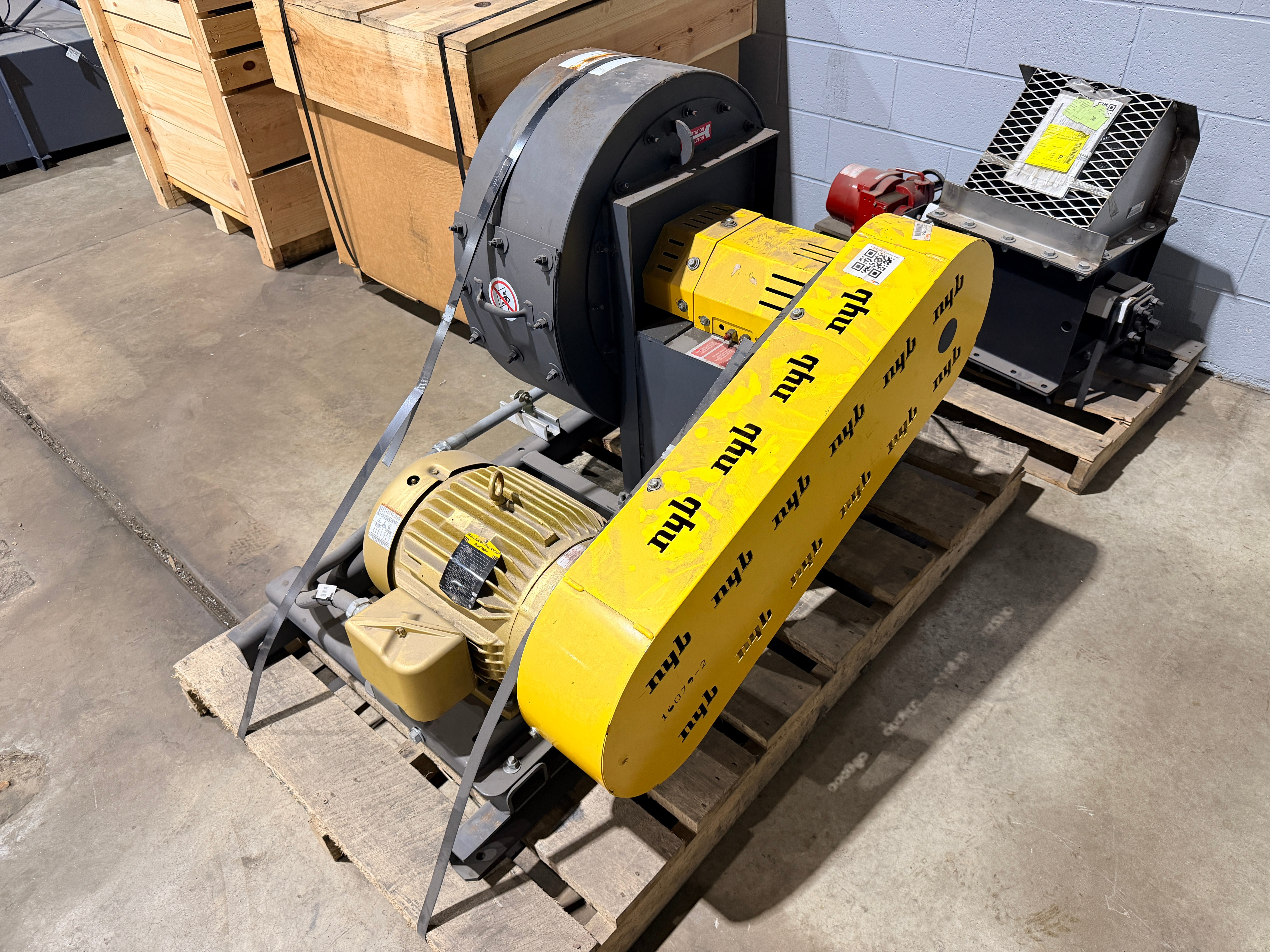

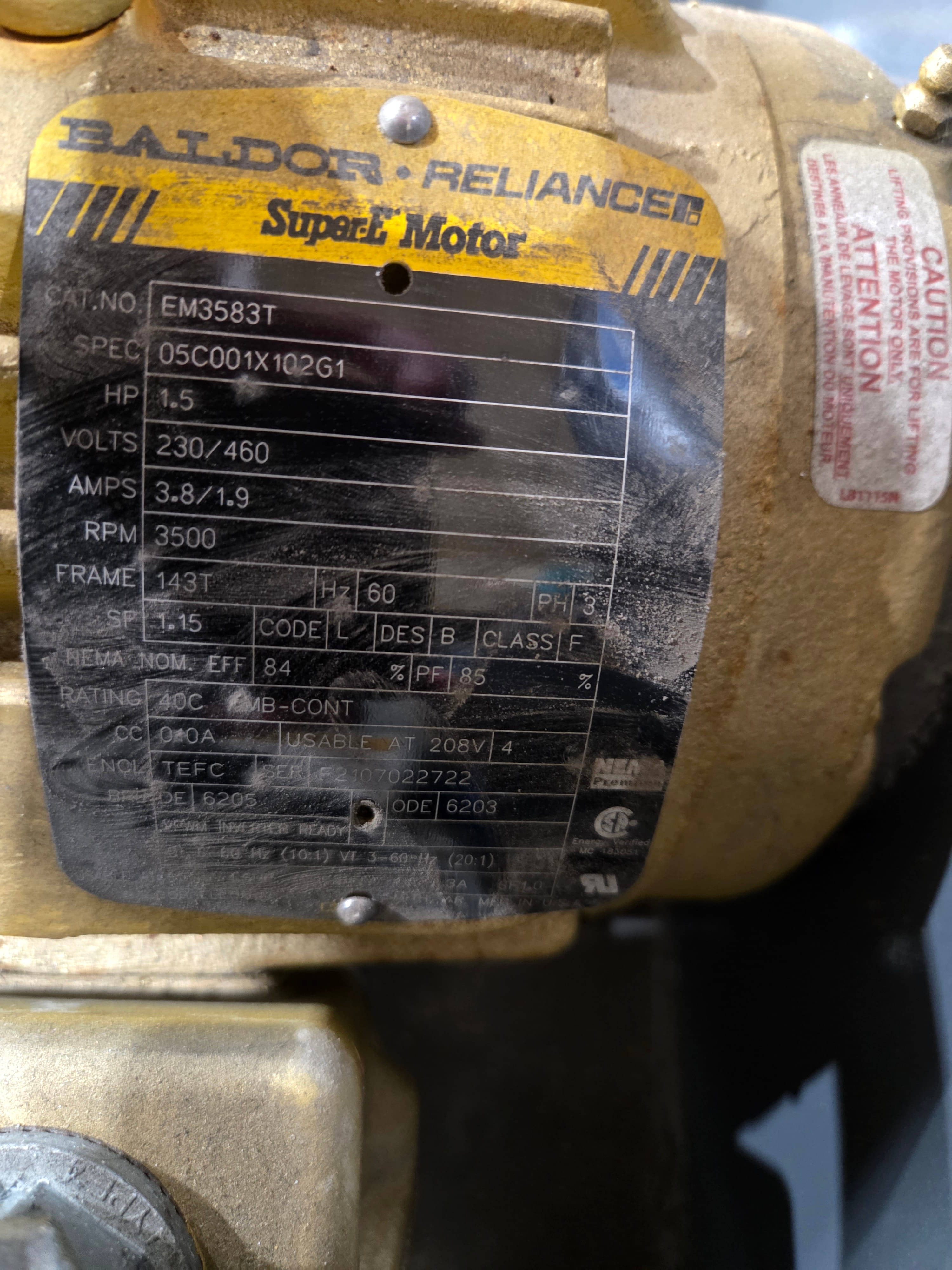

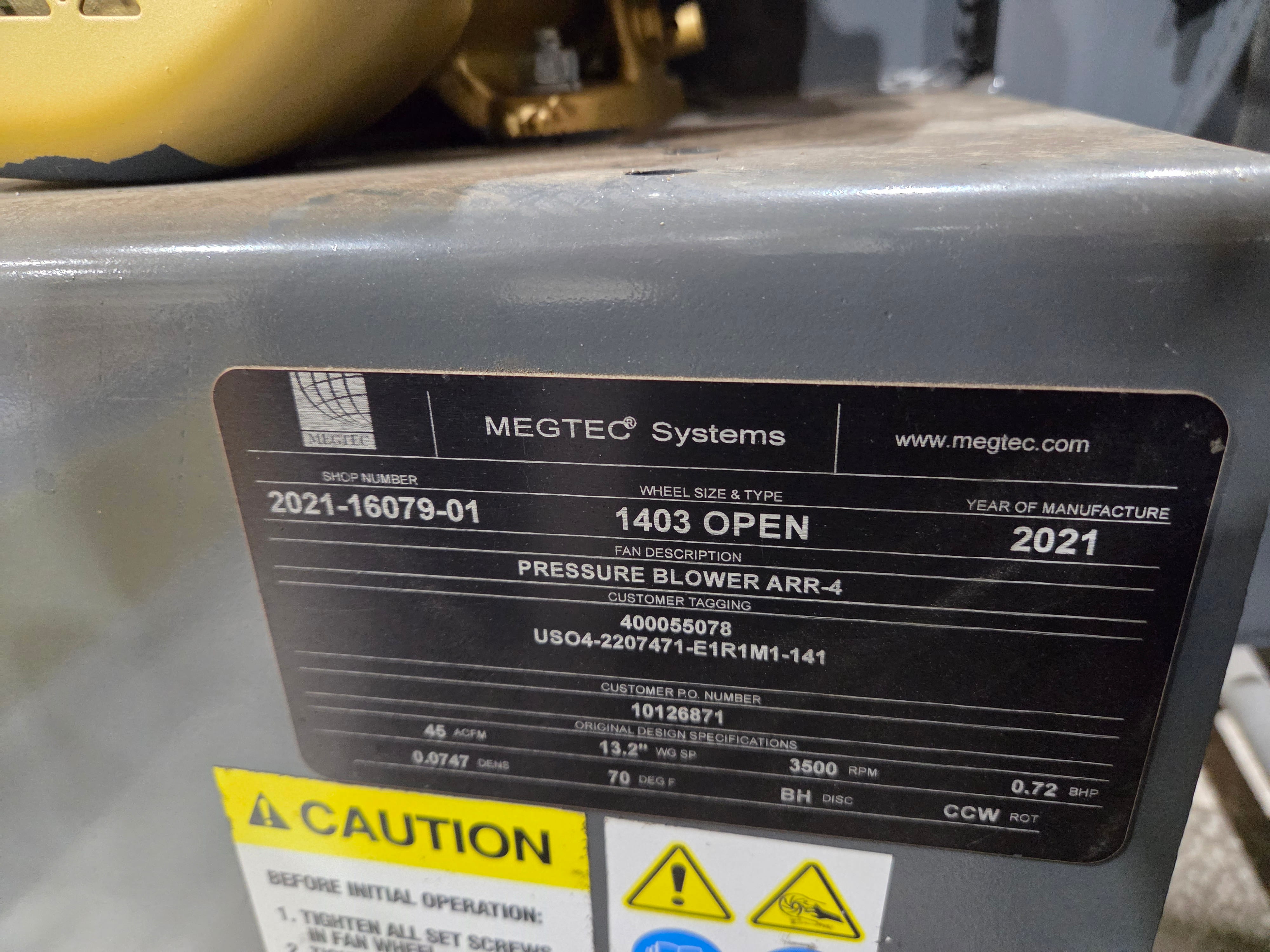

- Combustion blower with 1.5 hp motor
- Fresh air damper with electric actuator
- Remote Allen Bradley PanelView Plus 1000 HMI
- Allen Bradley Compact Logix PLC
- Yokogawa data logger
- 22' Exhaust Stack
See more case studies and photos of refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.
Equipment Specifications
- Type of Equipment:
- Brand:
- Approx. Footprint:10' wide x 26' long x 10' tall
- Weight:22,000 lbs
- Electrical Requirements:50 FLA
- Gas Requirements:330 cu ft @ 5 psi
- Compressed Air Requirements:5 CFM
Request A Quote
You can also call Buster at 920-309-0725 or send us an email.
Before & After Example
Similar Equipment In Stock
-p-2000.jpeg)
%20(1).jpg)
In many instances an RTO is also a viable option for applications currently treated by catalytic systems; or possibly a regenerative catalytic oxidizer (RCO). Click to see RTO & RCO inventory.
