Durr Reeco RL-25 25,000 Regenerative Thermal Oxidizer (RTO)
Durr Reeco RL-25 regenerative thermal oxidizer (RTO) with 25,000 scfm capacity for sale; including performance and parts warranty.
Request a Quote
east
No items found.

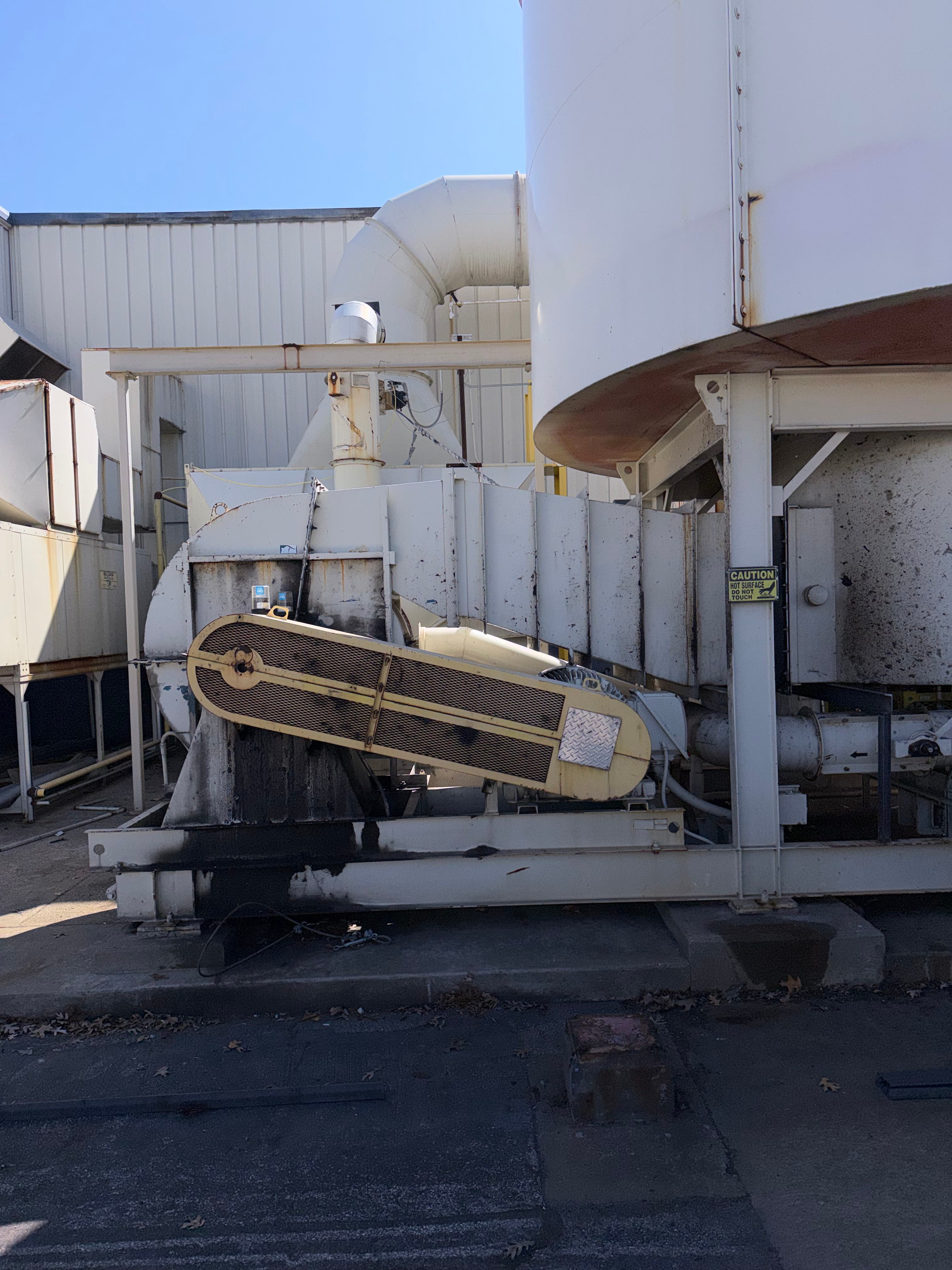

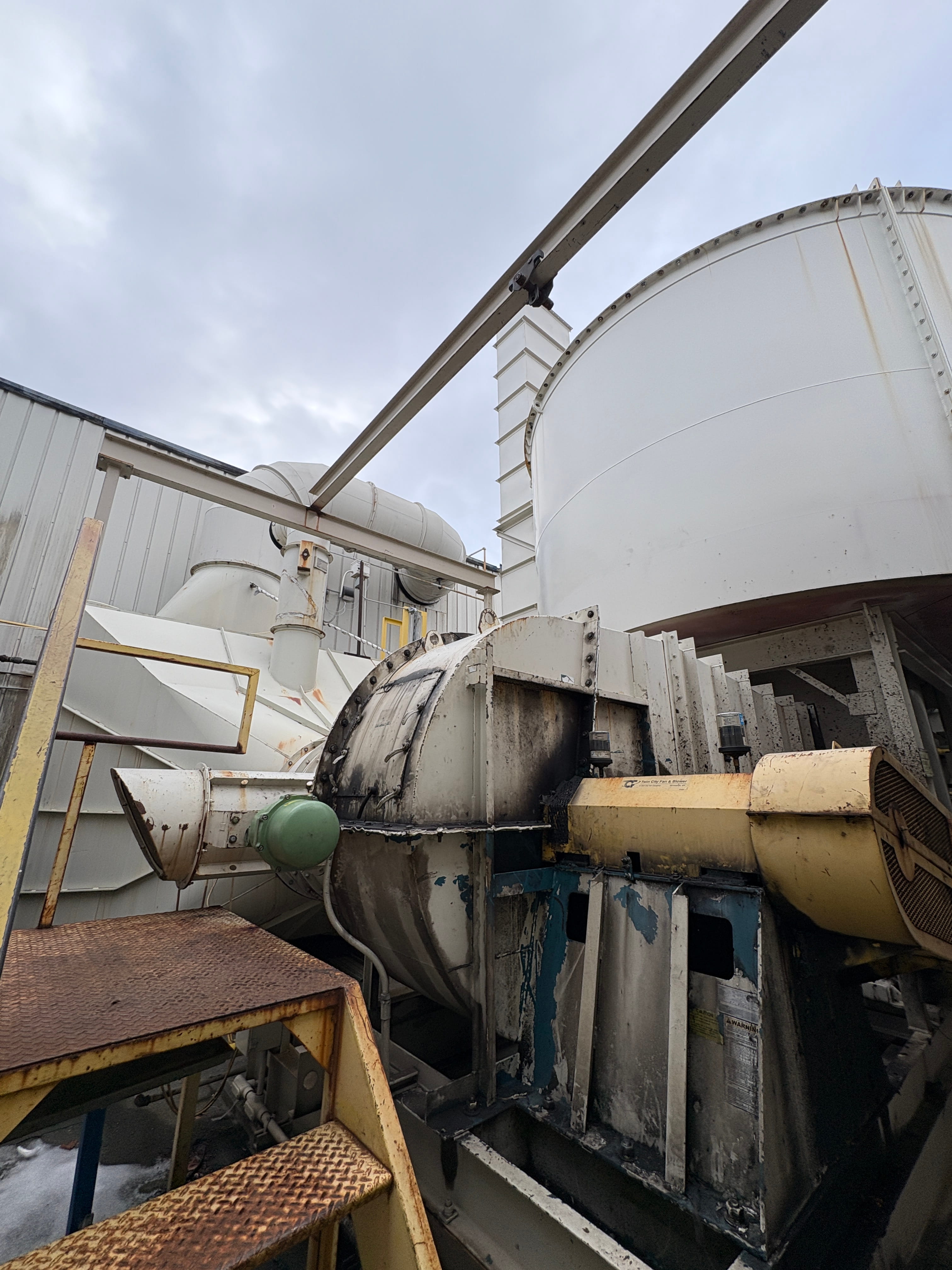

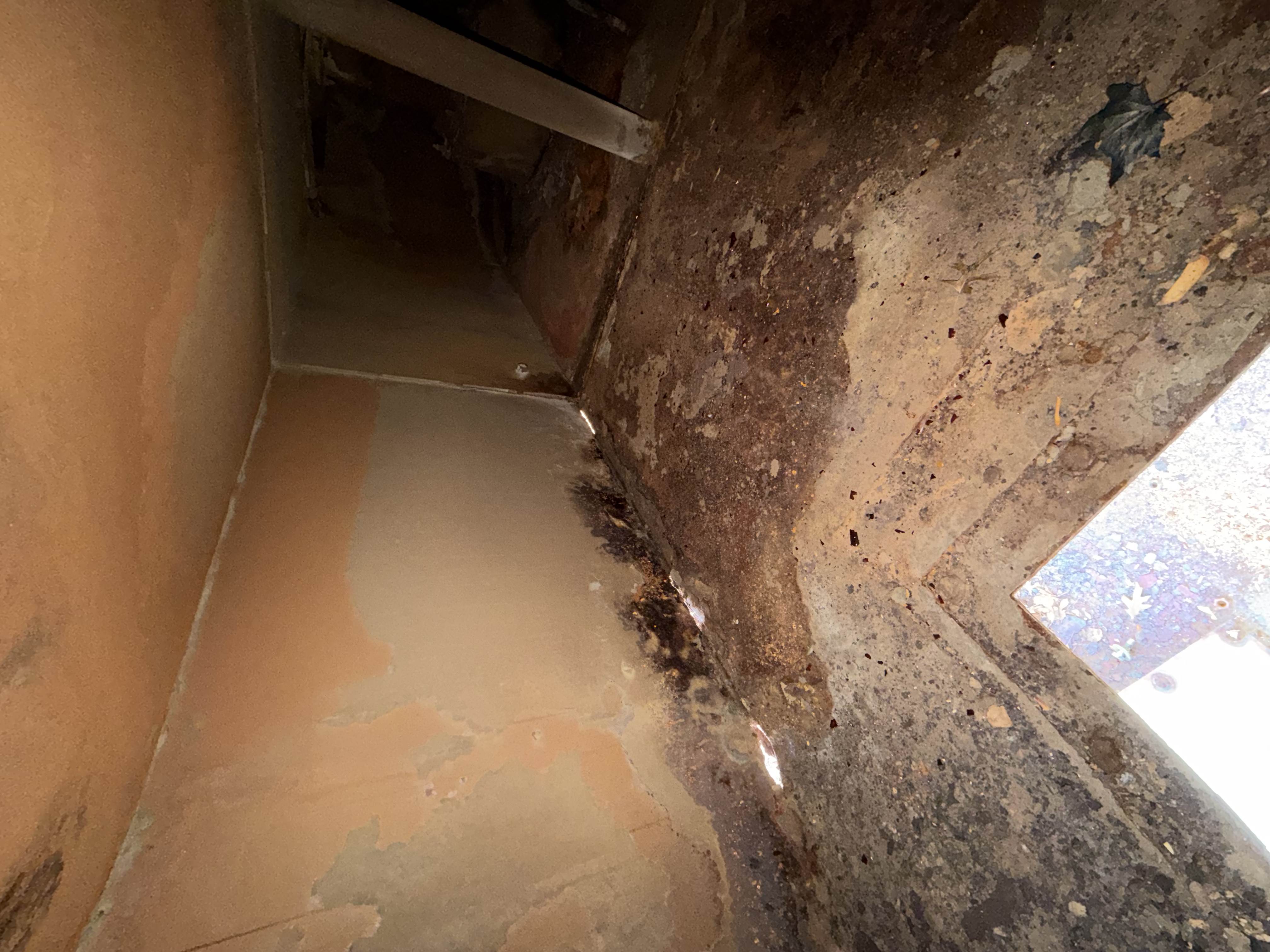

Please Note: The RTO shown in the main photo is representative of a completed unit following refurbishment and is provided for illustrative purposes only. It is not the exact unit being offered. Final appearance, configuration, and included components may vary based on specific project requirements, scope of refurbishment, and customer specifications. The smaller photos shown above depict the actual unit in its current condition prior to refurbishment.
Equipment Details
This Durr Reeco RL-25 25,000 regenerative thermal oxidizer (RTO) has 25,000 scfm capacity.
Listed below are the current features of this unit, equipment will be refurbished and upgraded per project requirements:
- 25,000 SCFM @ 150F inlet temp
- 95% heat recovery
- Electric rotary valve
- ~30’ tall stack
- Main RTO fan 150 HP and Yaskawa VFD

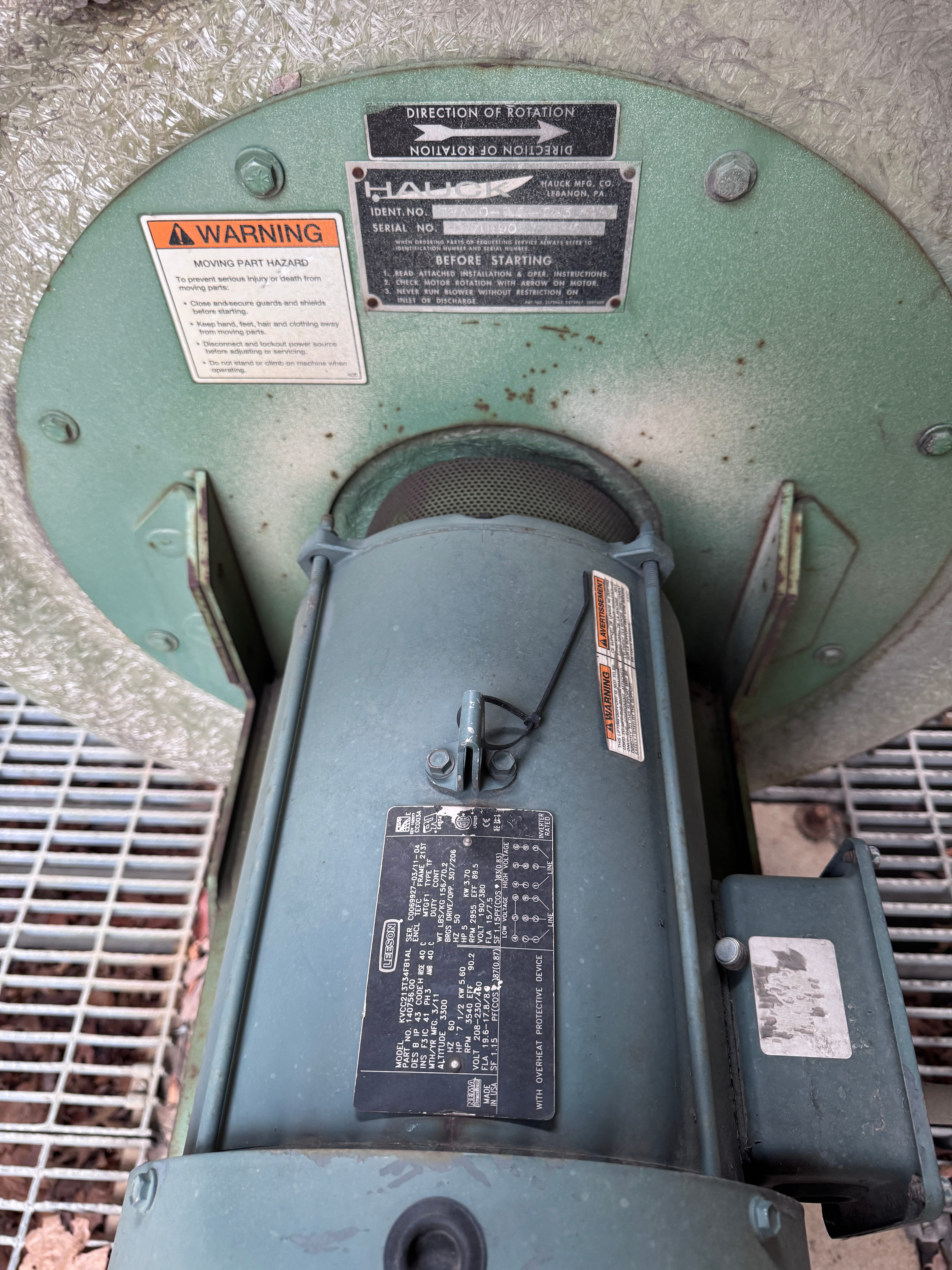

- Combustion blower with 7.5 HP motor
- Fives/North American burner
- Fresh air damper with electric actuator
- Isolation damper with electric actuator
- Allen Bradley Compact Logix PLC
- Touchscreen HMI
- Endress & Hauser data logger
Equipment Specifications
- Type of Equipment:
- Brand:
- Approx. Footprint:~33' long x 22' wide x 19' high (without stack)
- Weight:~115,200 lbs
- Electrical Requirements:~300 FLA
- Gas Requirements:9,600 CFH
- Compressed Air Requirements:15 CFH
Request A Quote
You can also call Buster at 920-309-0725 or send us an email.
Before & After Example
Similar Equipment In Stock
-p-2000.jpeg)
In many instances an RTO is also a viable option for applications currently treated by catalytic systems; or possibly a regenerative catalytic oxidizer (RCO). Click to see RTO & RCO inventory.
