TANN Corp. 7000 SCFM Regenerative Thermal Oxidizer (RTO)
TANN Corp. regenerative thermal oxidizer (RTO) with 7,000 scfm capacity for sale; including performance and parts warranty. Previously treated printing press emissions.
Equipment Details
TANN Corp. 7,000 Regenerative Thermal Oxidizer For Sale
This TANN Corporation regenerative thermal oxidizer (RTO) has a maximum capacity of 7000 SCFM and is in exceptional condition. The unit had previously been used to treat emissions from a heatset printing press until August 2019 when it was taken offline.
Due to its valve-under vertical orientation, this RTO model has a unique design that offers a small footprint so it requires very little real estate. Also includes a 36 foot, 20 inch diameter exhaust stack.
Listed below are the current features of this unit, equipment will be refurbished and upgraded per project requirements:
- Design flow- 7,000 SCFM (up to 400 deg F)
- 94% effective heat exchanger, random ceramic media

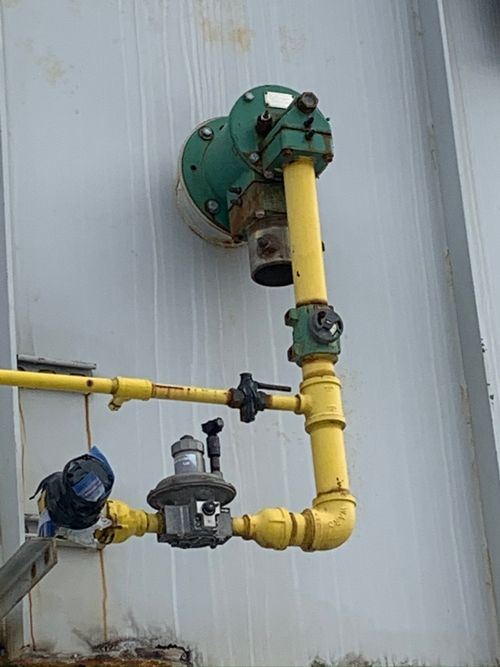

- Pre-piped gas train
- Exhaust (main) fan with 60 hp motor
- Allen Bradley PowerFlex Variable Speed Drive
- Combustion blower with 3.0 hp motor (direct drive)
- Fresh air damper with electric actuator
- Allen Bradley PLC SLC 5/03 & PanelView Plus 1000 HMI
- Yokogawa digital chart recorder
- Complete owner’s manual with electrical drawings
See a range of case studies of Refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.
Equipment Specifications
- Type of Equipment:
- Brand:
- Approx. Footprint:22’ long, 18'-6” wide and 12' high (excl. exhaust stack)
- Weight:44,250 lbs
- Electrical Requirements:92 Full Load Amps
- Gas Requirements:1750 cfh @ 2.0 – 5.0 psi. (at full flow, cold start)
- Compressed Air Requirements:7 CFM @ 80 PSI
Request A Quote
You can also call Buster at 920-309-0725 or send us an email.
Before & After Example
