Durr MEGTEC Systems Clean Switch 25,000 Regenerative Thermal Oxidizer (RTO)
Durr MEGTEC Systems Clean Switch regenerative thermal oxidizer (RTO) with 25,000 scfm capacity for sale; including performance and parts warranty. Previously treated pharmaceutical emissions.
Equipment Details
Durr MEGTEC Systems Clean Switch 25,000 Regenerative Thermal Oxidizer For Sale
Durr Environmental-MEGTEC Systems 25,000 SCFM regenerative thermal oxidizer (RTO). Previously treated pharmecutical emissions. Clean Switch RTOs are very well built with a small footprint. In very good condition.
Listed below are the current features of this unit, equipment will be refurbished and upgraded per project requirements:
- Maximum design flow: 25,000 scfm @ 125° F process exhaust temp.

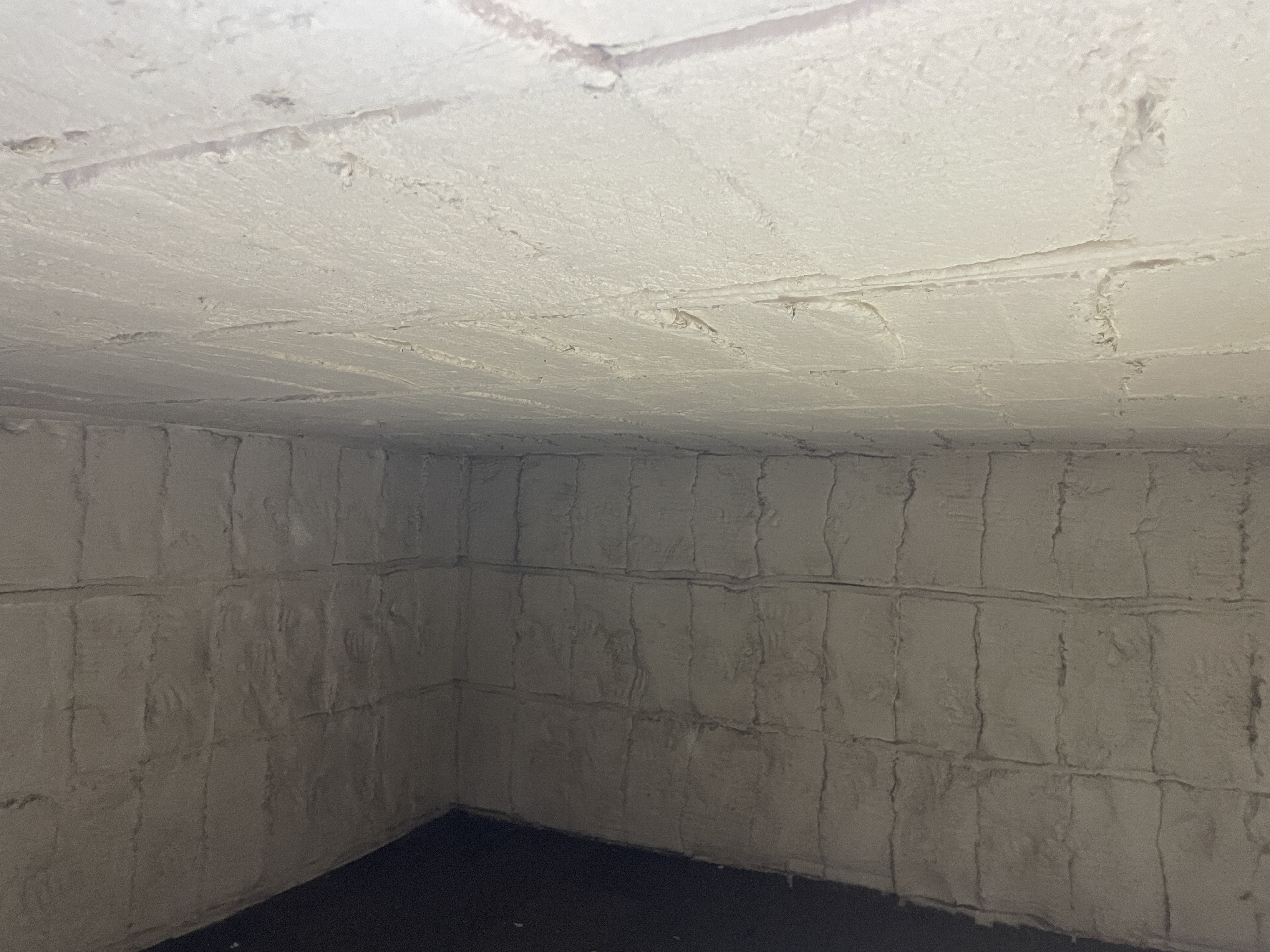

- Two media chamber design with structured ceramic media
- 95% effective heat exchanger

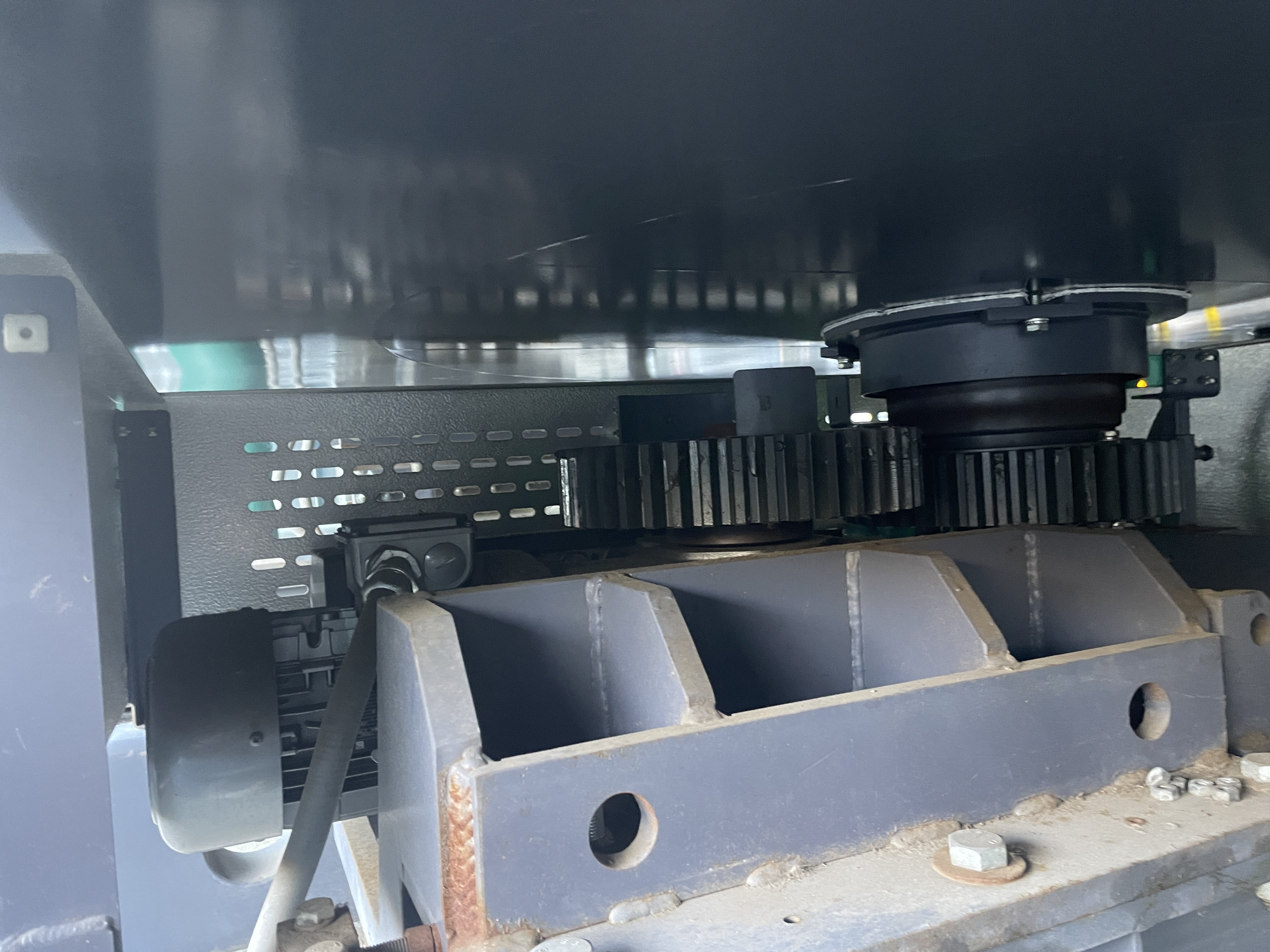

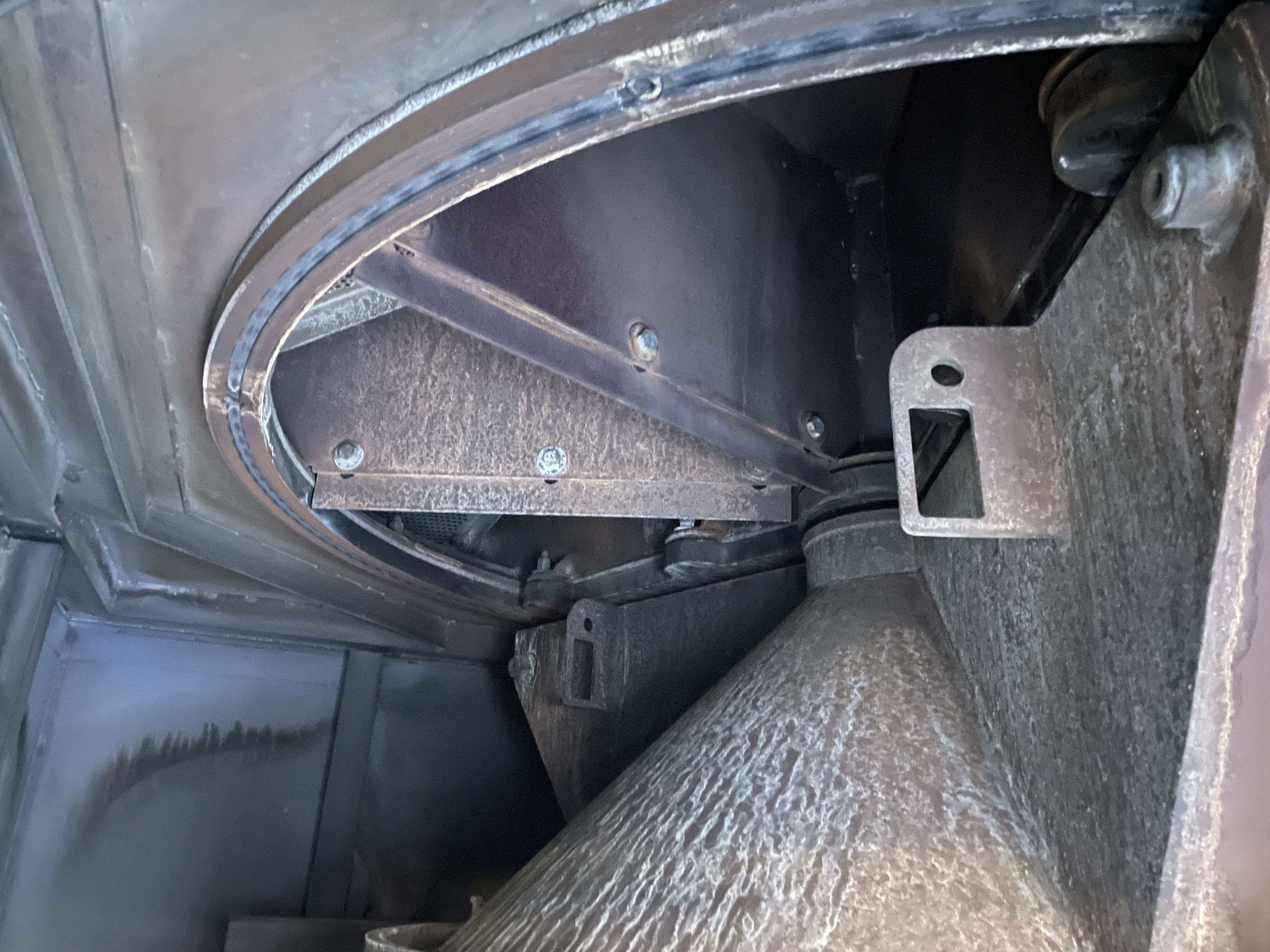

- Rotary Switching Valve – for flow direction changes thru the media (electric drive)

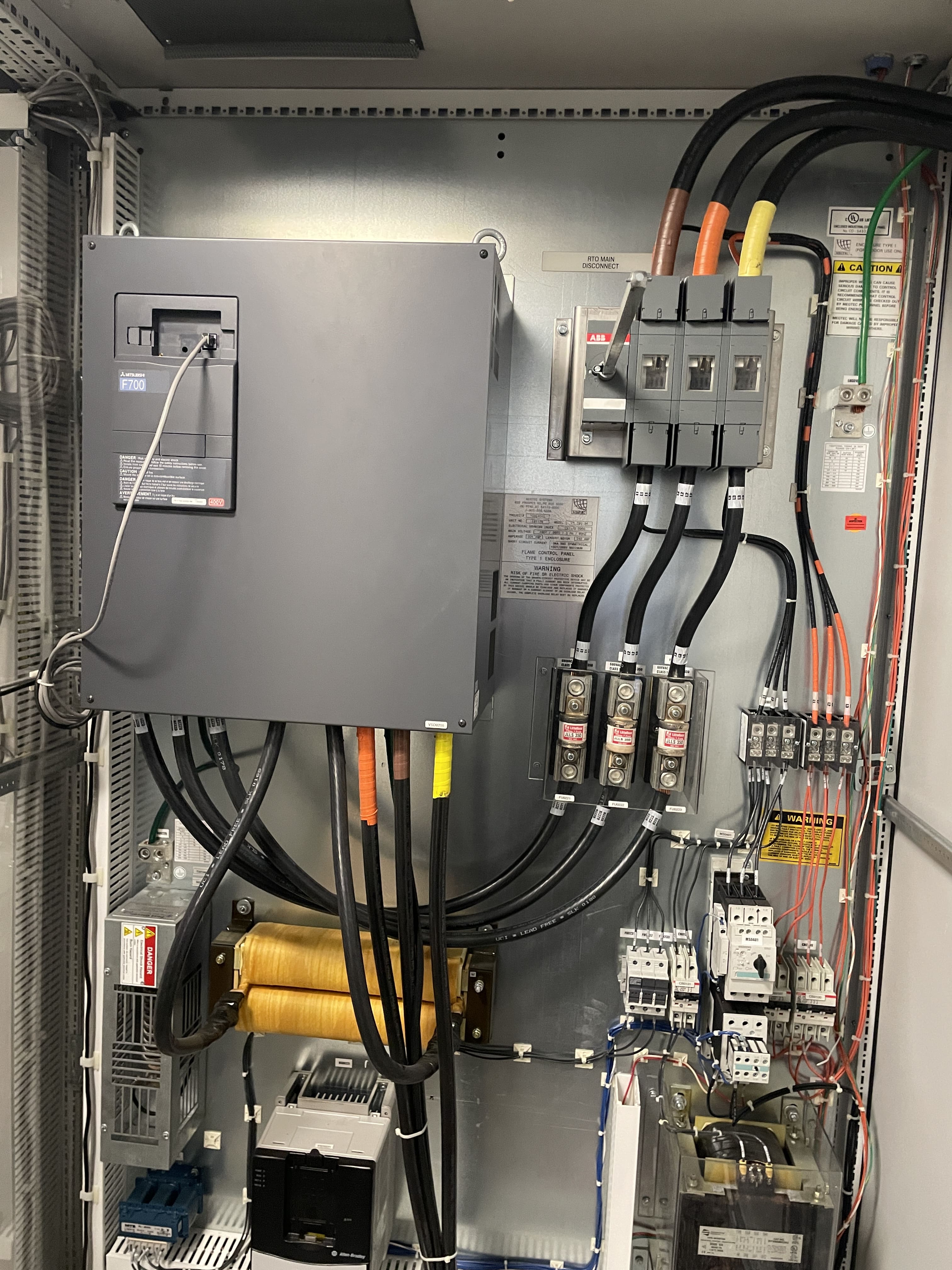

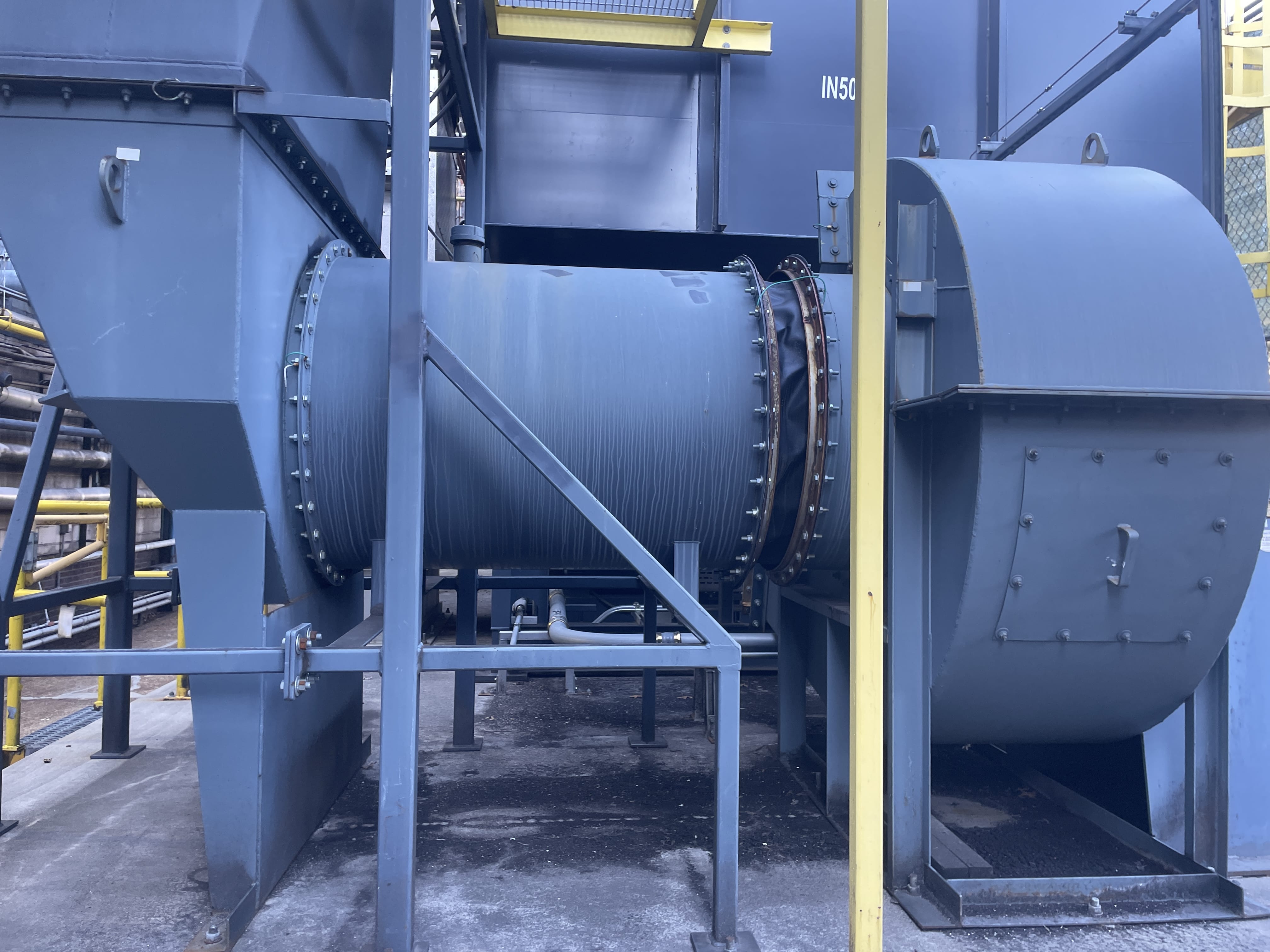

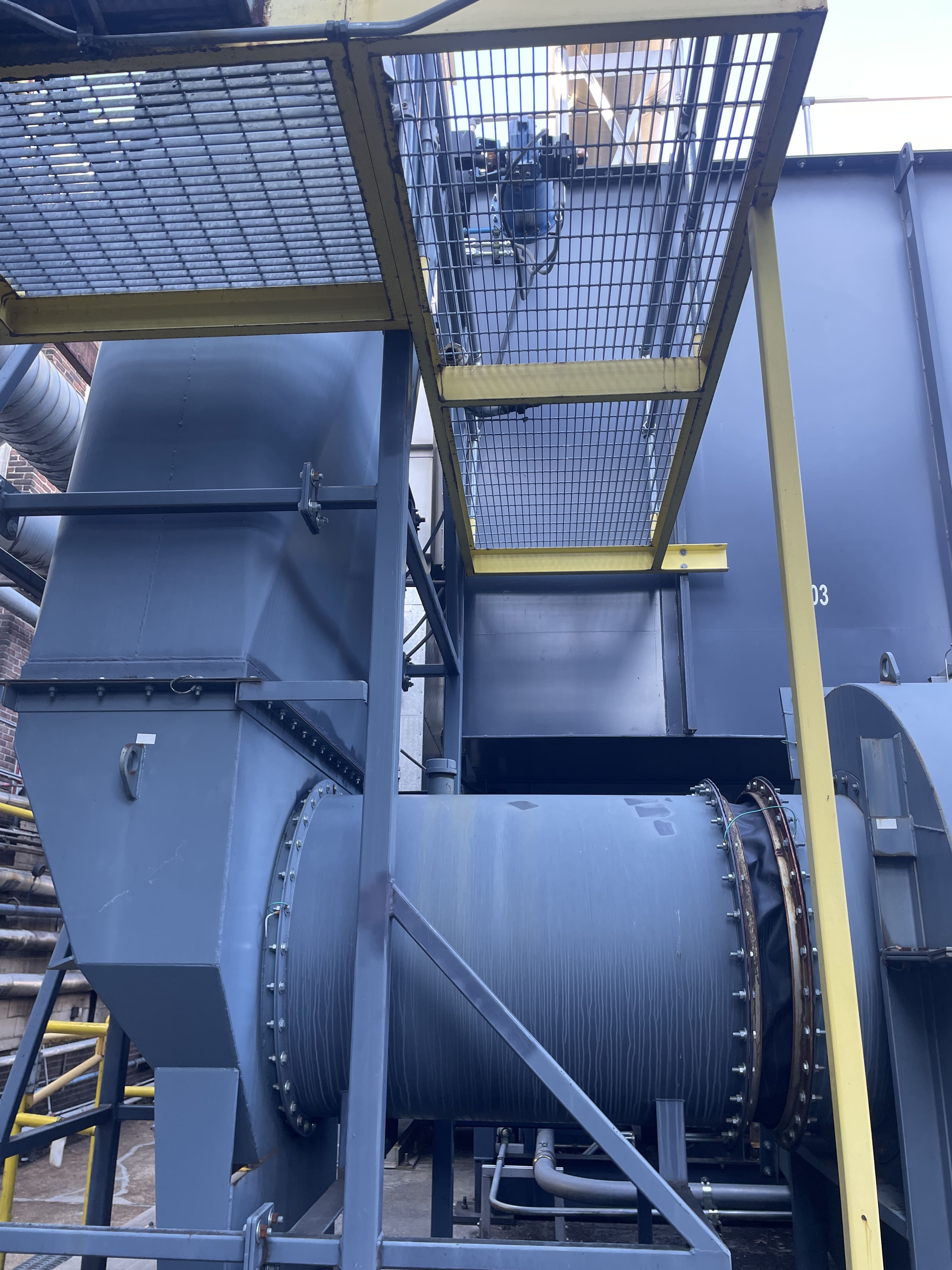

- Main exhaust fan with 200 hp TEFC motor and Mitsubishi F700 Variable Speed Drive

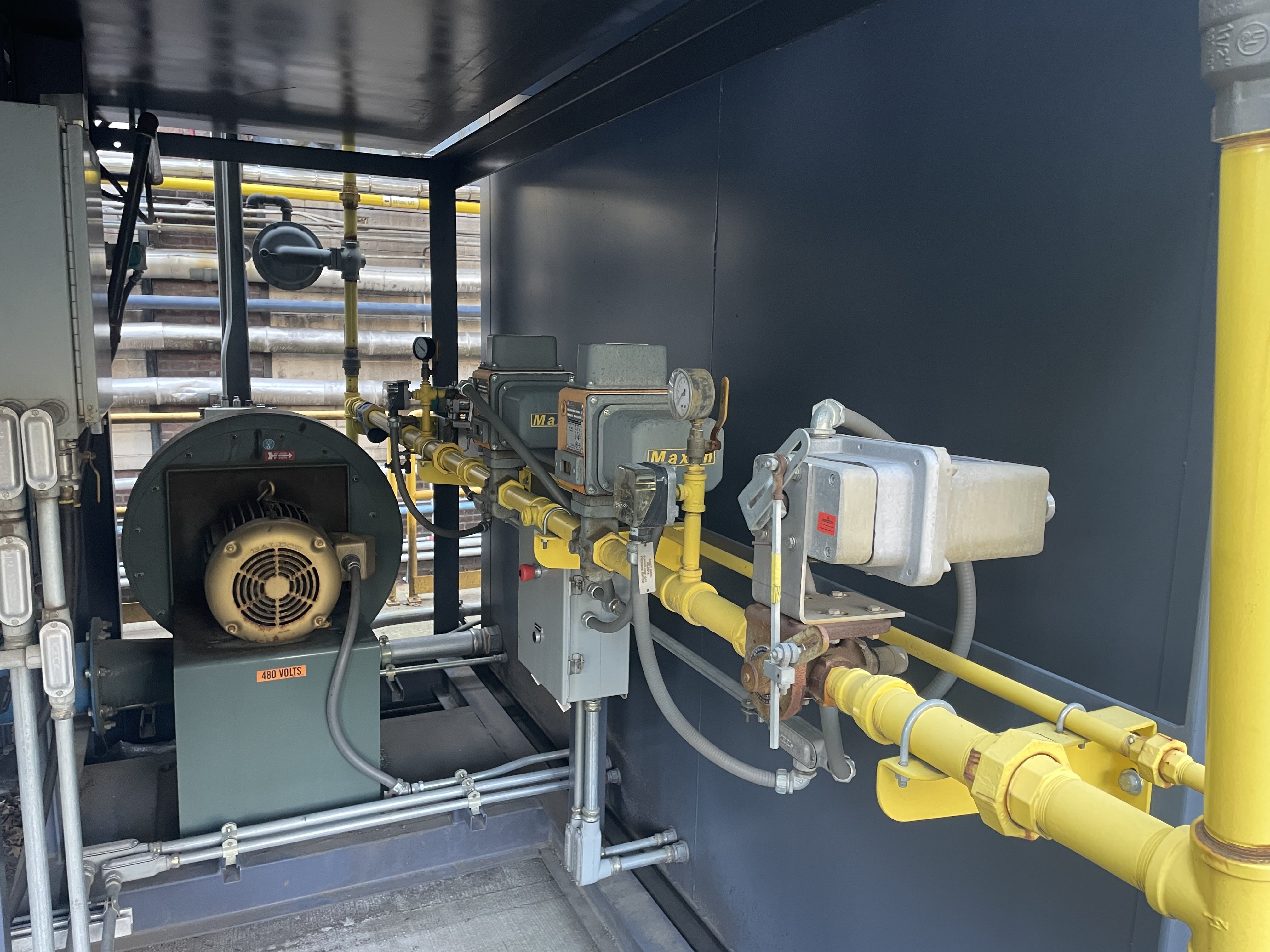

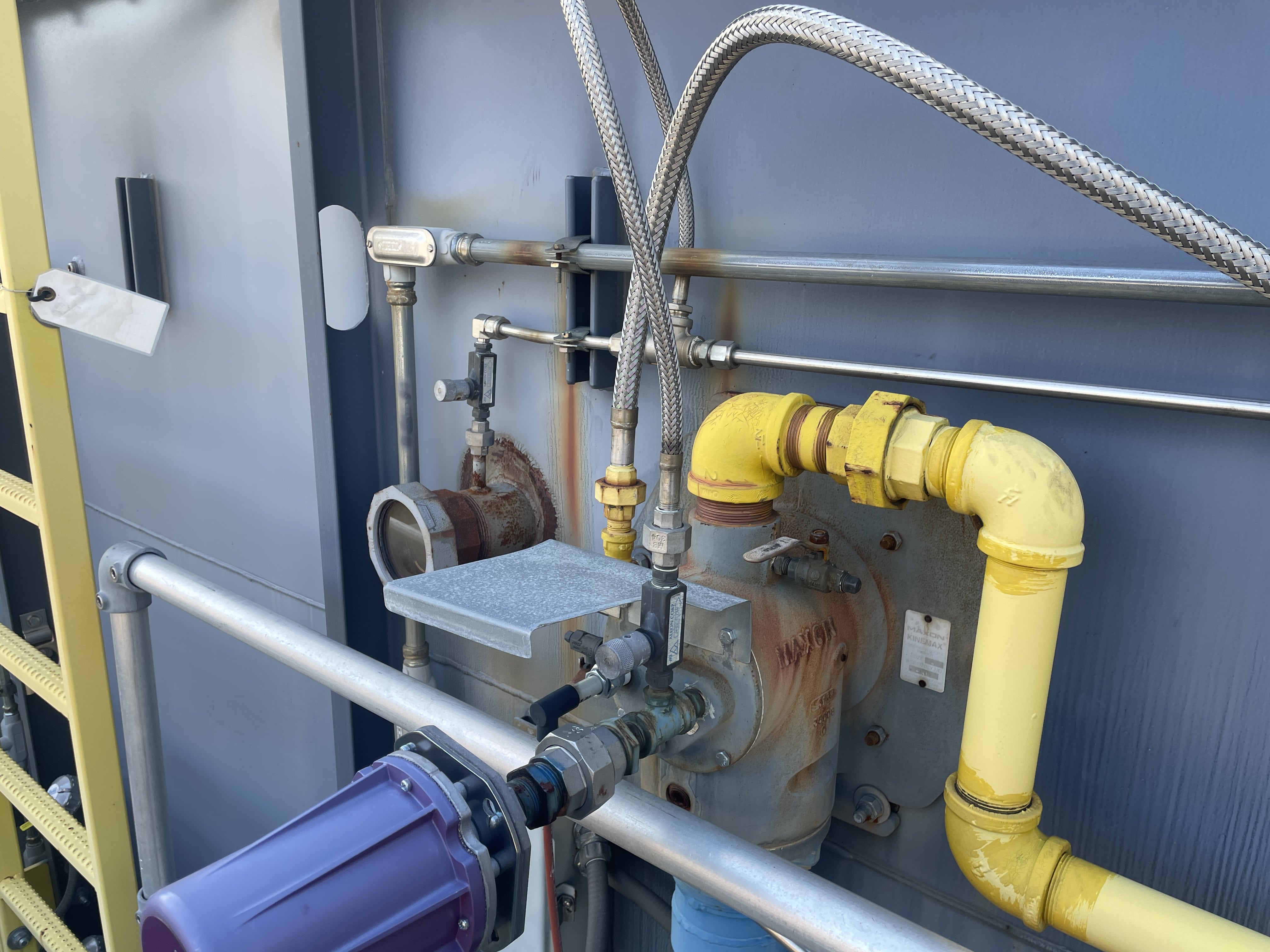

- Nozzle Mix Burner - Maxon Kinemax 4

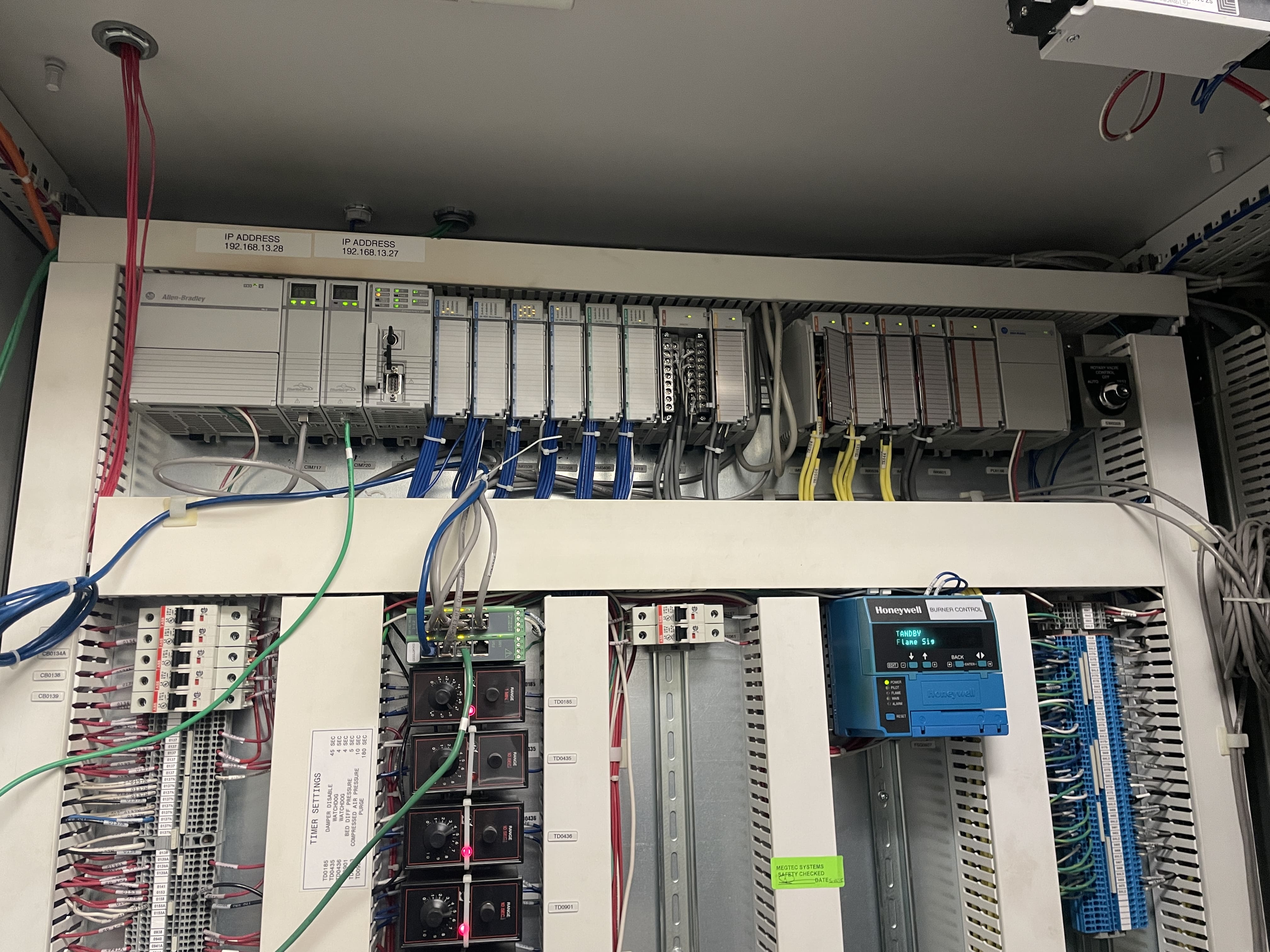

- Air Conditioned/Heated Control Room. Allen Bradley Compact Logix PLC and Allen Bradley PanelView Plus 1000 touchscreen HMI (upgrade available)
- Hot gas bypass feature for handling high VOC concentrations
- Exhaust stack (40' from ground) with mix box and stainless top section
- Yokogawa Chart Recorder
See case studies of Refurbished RTO units by Kono Kogs, or contact our team to speak with an expert.
Equipment Specifications
- Type of Equipment:
- Brand:
- Approx. Footprint:38' L x 20' W x 19' H (Excl. Stack)
- Weight:133,000 LBS
- Electrical Requirements:460/3/60, 310 FLA (preliminary estimate)
- Gas Requirements:5,000 CFH Max @ 5+/-0.25 psig @ 1000 btu/h
- Compressed Air Requirements:5 CFM @ 80 PSIG -40 F Dewpoint
Request A Quote
You can also call Buster at 920-309-0725 or send us an email.

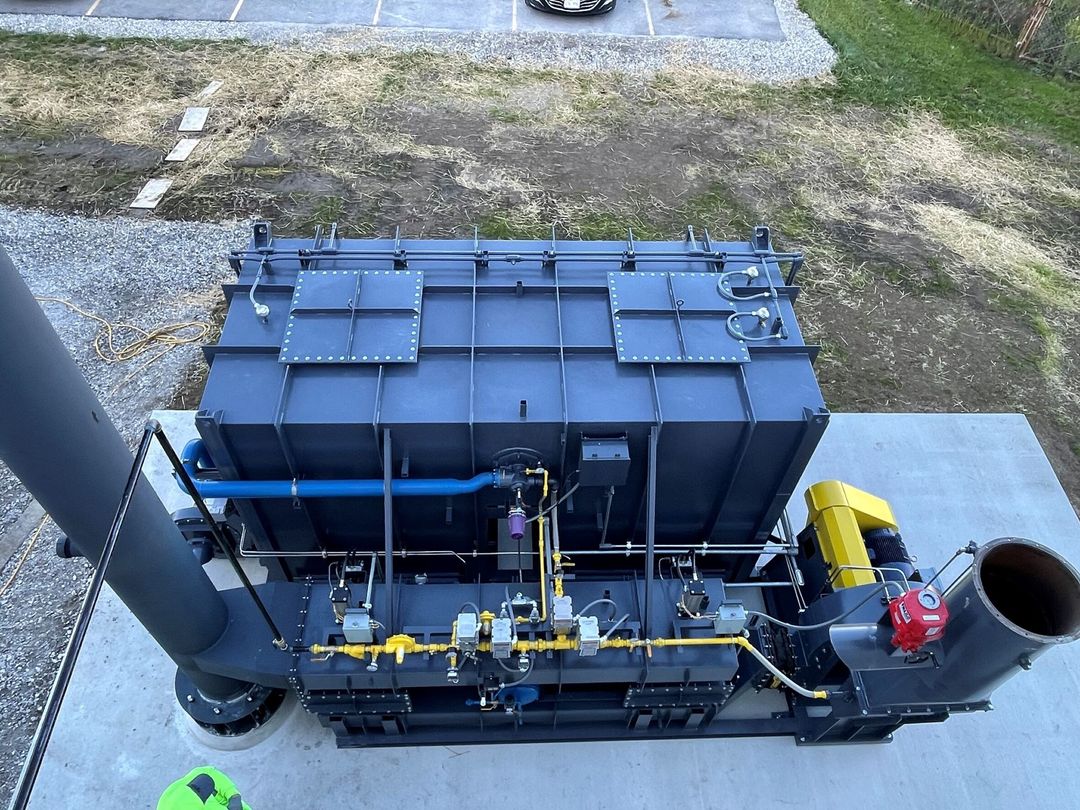

Before & After Example
